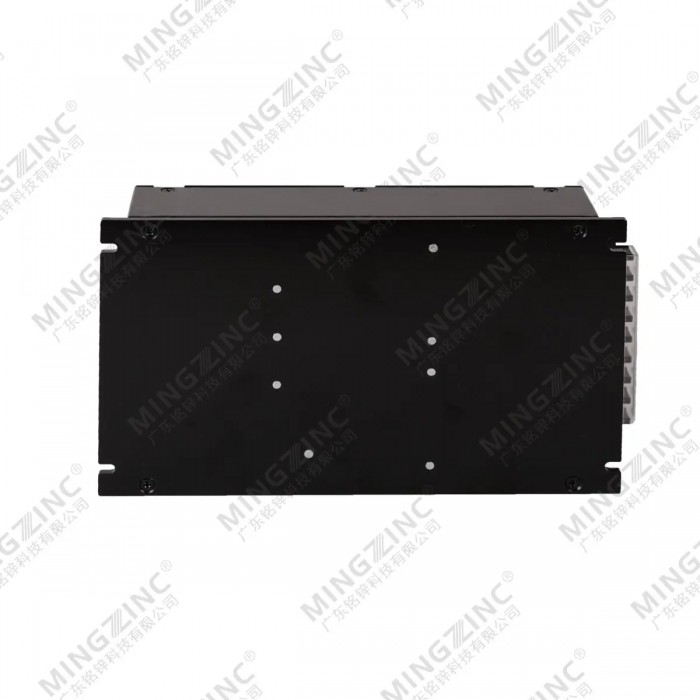

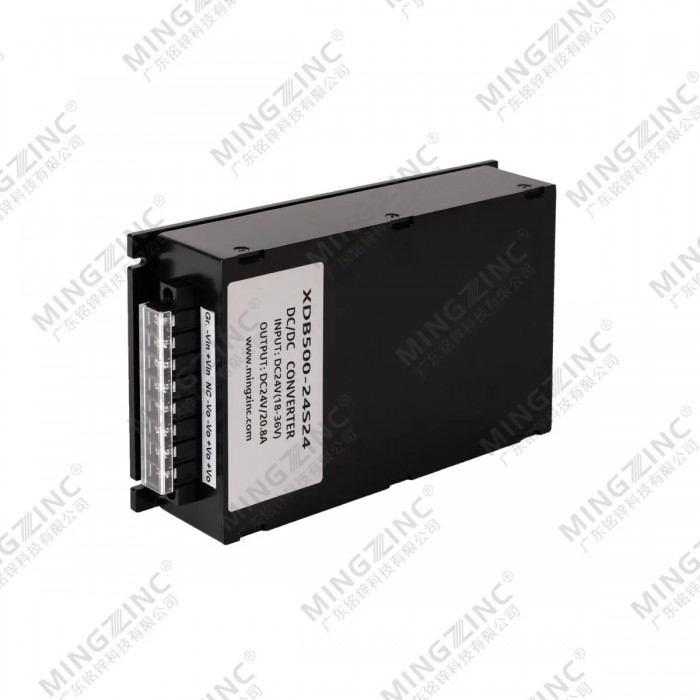

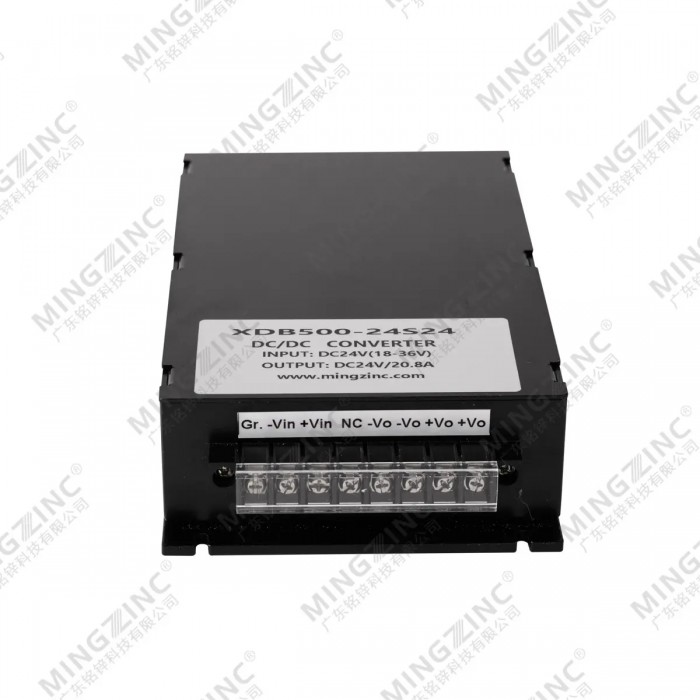

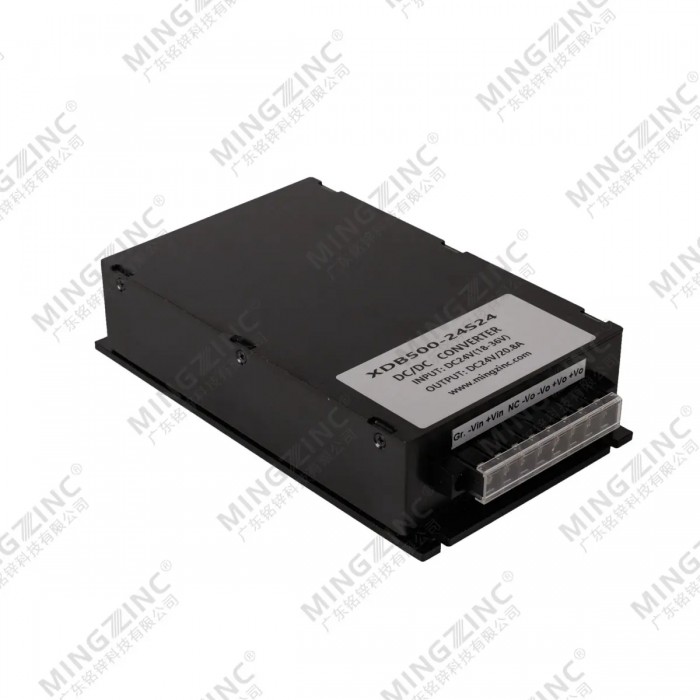

Isolated AC-DC converter module
- Product Details
IMODELS LIST
Single Channels Output
Models | Input Voltage Range | Input Voltage Rating | Output Voltage | Output Current | Output Power | Efficiency (Typ) |
XDB350-24S12 | 18-36VDC | 24VDC | 12VDC | 29.1A | 350W | 89% |
XDB500-24S24 | 18-36VDC | 24VDC | 24VDC | 20.8A | 500W | 89% |
XDB500-48S24 | 36-72VDC | 48VDC | 24VDC | 20.8A | 500W | 88% |
XDB500-110S24 | 66-154VDC | 110VDC | 24VDC | 20.8A | 500W | 89% |
XDB500-600S24 | 400-800VDC | 600VDC | 24VDC | 20.8A | 500W | 89% |
XDB500-600S48 | 400-800VDC | 600VDC | 48VDC | 10.4A | 500W | 84% |
XDB500-600S110 | 400-800VDC | 600VDC | 110VDC | 4.5A | 500W | 84% |
Only the typical models are listed. If you need other models,please inform the power ,input voltage and output voltage,then feel free to call us.
II. FEATURES
1 | High and low voltage input is for option |
2 | 2X，voltage input |
3 | Output short circuit protection |
4 | Iag Easy installation |
5 | Design for high reliability ,long lifetime |
INPUT CHARACTERISTIC
Rated value(VDC) | Voltage Range(VDC) |
12VDC | 9-18VDC |
24VDC | 18-36VDC |
48VDC | 36-72VDC |
110V DC | 66-154VDC |
600VDC | 400-800VDC |
IV. OUTPUT CHARACTERISTIC
Power | 350-500W |
Output Current | 5-40A |
Output Voltage | 5-48VDC |
Voltage Set-point Accuracy | ±2% |
Line Regulation | ±0.5% |
Load Regulation | ±0.5% |
rate of change of temperature | ±0.01%/℃ |
Output Current Limting | 120%(Typ) |
response time | 400μs |
GENERAL CHARACTERISTIC
Switching Frequency | 100-200KHz |
Isolation Resistance | 200MΩ |
MTBF | >500000 h |
lsolation Voltage
Input-Output | >1500VDC |
Input-Case | >1050VDC |
Output-Case | >500VDC |
Environmental Characteristics
Case Temperature | Industry | -25 – +85℃ |
Military l | -40 – +85℃ | |
Military II | -55 – +85℃ | |
Storage Temperature | Industry | -45 – +105℃ |
Military l | -55 – +105℃ |

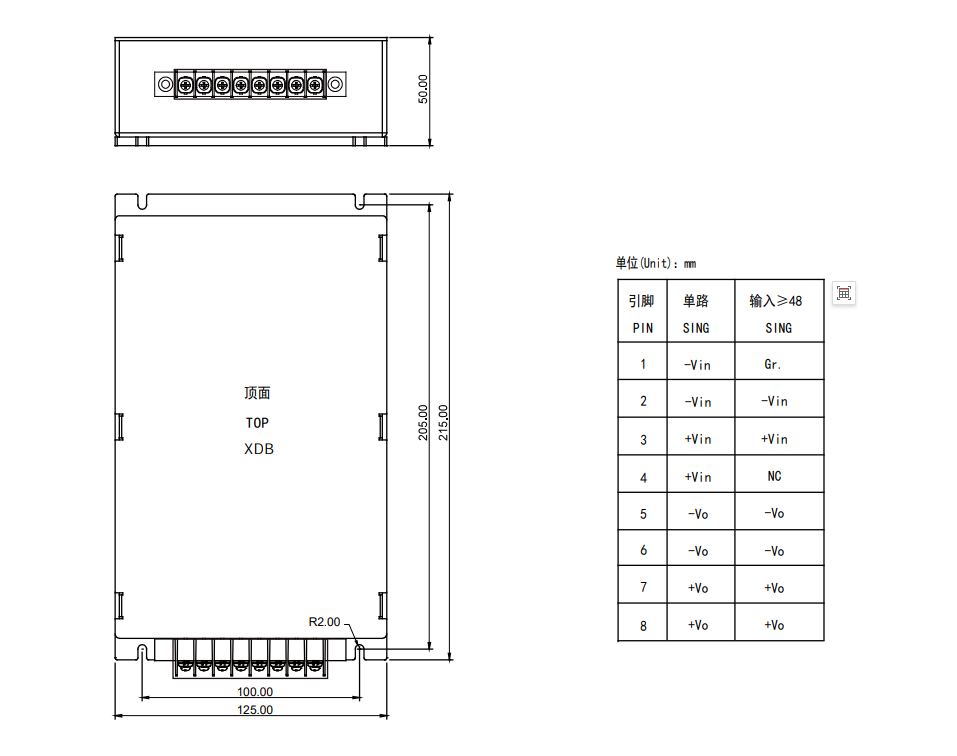

MECHANICAL DRAWING AND PIN DEFINITION
