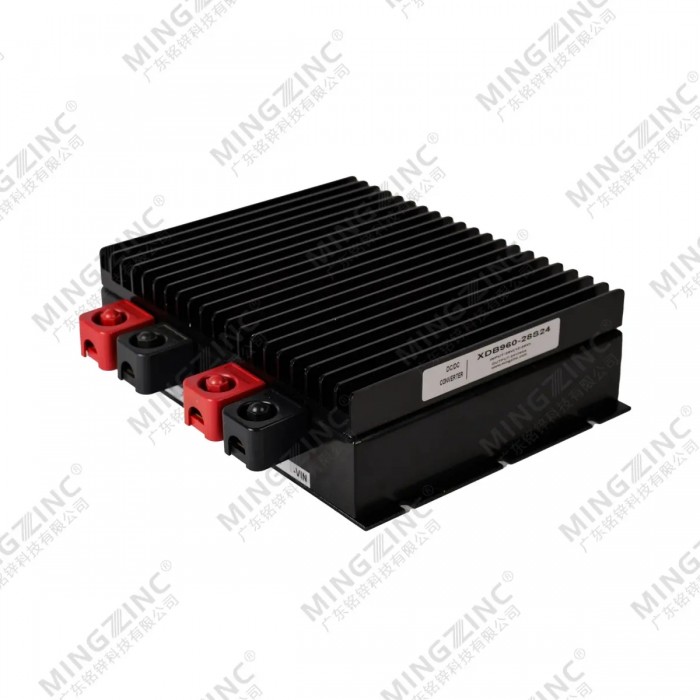

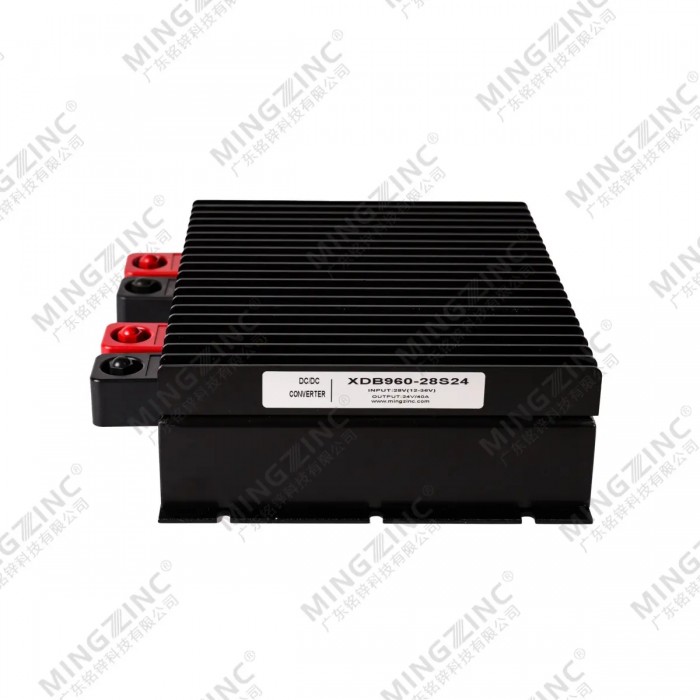

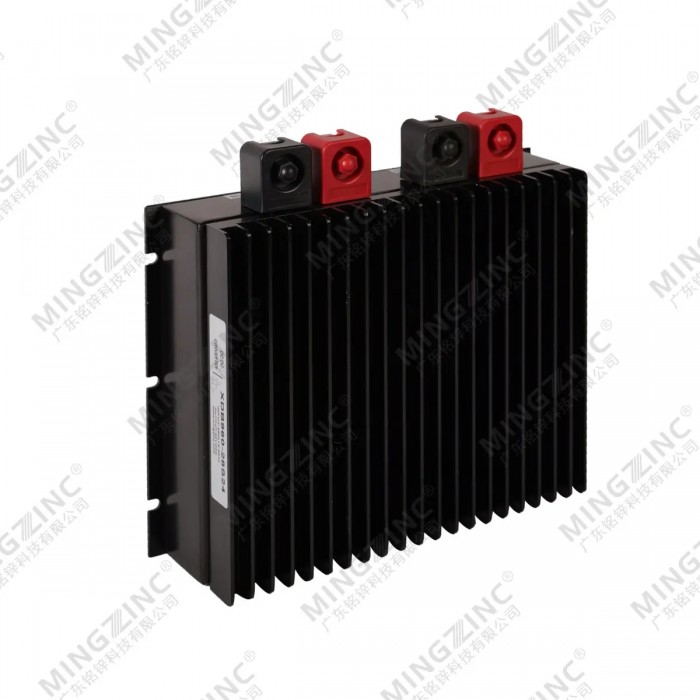

Isolated AC-DC converter module
- Product Details
I.MODELS LIST
Single Channels Output
Model | Input Voltage Range | Input Voltage Ranting | Output Voltage | Output Current | Output Power | Efficiency (Typ) |
XDB480-12S12 | 18-36VDC | 24VDC | 12VDC | 40A | 480W | 83% |
XDB480-24S24 | 18-36VDC | 24VDC | 24VDC | 20A | 480W | 85% |
XDB560-24S28 | 18-36VDC | 24VDC | 28VDC | 20A | 560W | 88% |
XDB480-24S48 | 18-36VDC | 24VDC | 48VDC | 10A | 480W | 88% |
XDB480-48S12 | 36-72VDC | 48VDC | 12VDC | 40A | 480W | 83% |
XDB720-48S24 | 36-72VDC | 48VDC | 24VDC | 30A | 720W | 88% |
XDB480-48S48 | 36-72VDC | 48VDC | 48VDC | 10A | 480W | 88% |
XDB480-110S12 | 66-154VDC | 110VDC | 12VDC | 40A | 480W | 82% |
XDB720-110S24 | 66-154VDC | 110VDC | 24VDC | 30A | 720W | 83% |
Only the typical models are listed. If you need other models,please inform the power ,input voltage and output voltage, then feel free to call us.
II. FEATURES
1 | II type input filter |
2 | High and low voltage input is for option |
3 | 2X，voltage input |
4 | Output short circuit protection |
6 | Iag Easy installation |
5 | Design for high reliability ,long lifetime |
INPUT CHARACTERISTIC
Rated value(VDC) | Voltage Range(VDC) |
12VDC | 9-18VDC |
24VDC | 18-36VDC |
48VDC | 36-72VDC |
110V DC | 66-154VDC |
IV. OUTPUT CHARACTERISTIC
Power | 480-1000W |
Output Current | 5-40A |
Output Voltage | 5-48VDC |
Voltage Set-point Accuracy | ±2% |
Line Regulation | ±0.5% |
Load Regulation | ±0.5% |
rate of change of temperature | ±0.01%/℃ |
Output Current Limting | 120%(Typ) |
response time | 400μs |
GENERAL CHARACTERISTIC
Switching Frequency | 160-200KHz |
Isolation Resistance | 200MΩ |
MTBF | >500000 h |
lsolation Voltage
Input-Output | >1500VDC |
Input-Case | >1050VDC |
Output-Case | >500VDC |
Environmental Characteristics
Case Temperature | Industry | -25 ~ +85℃ |
Military l | -40 ~ +85℃ | |
Military II | -55 ~ +85℃ | |
Storage Temperature | Industry | -45 ~ +105℃ |
Military l | -55 ~ +105℃ |

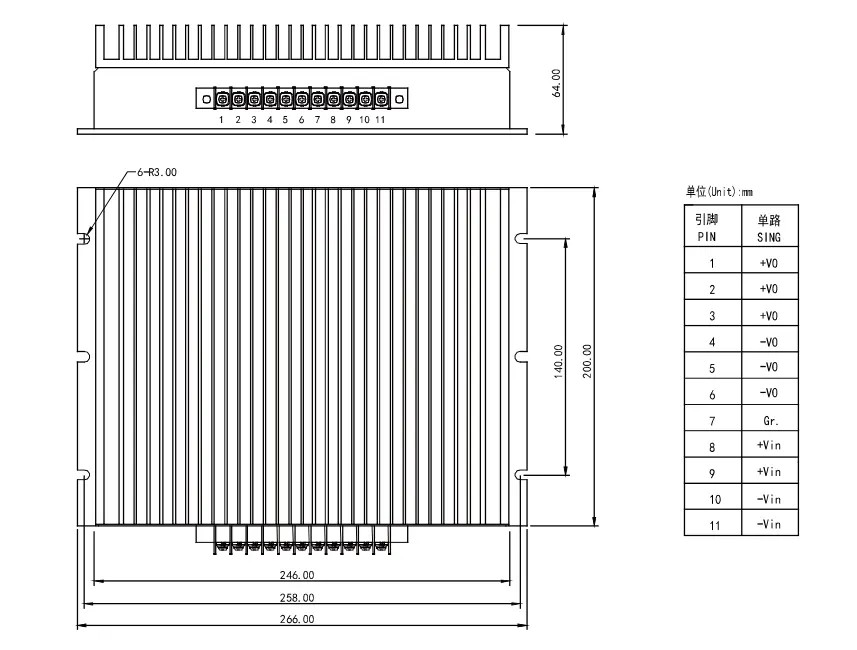

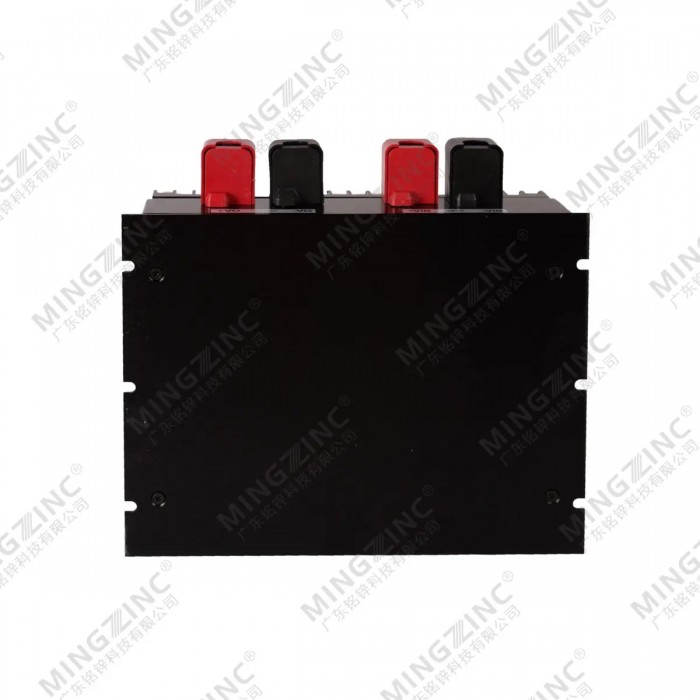

MECHANICAL DRAWING AND PIN DEFINITION
