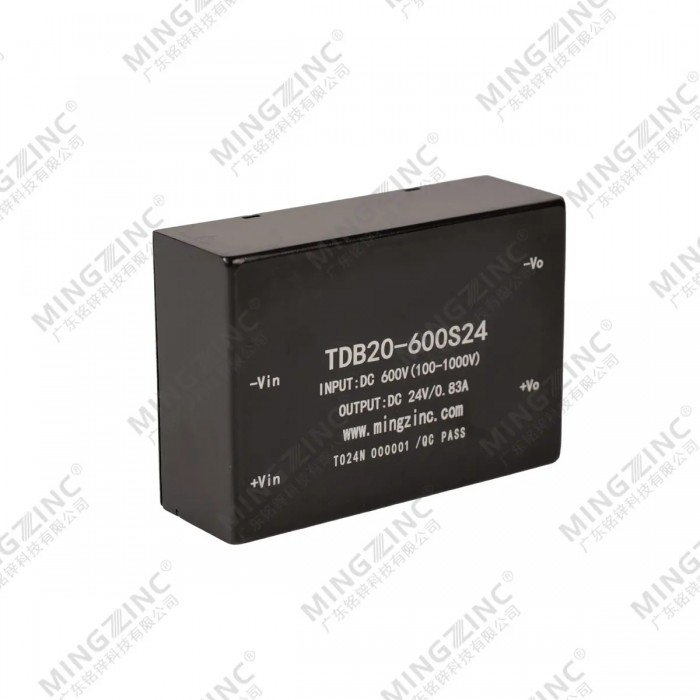

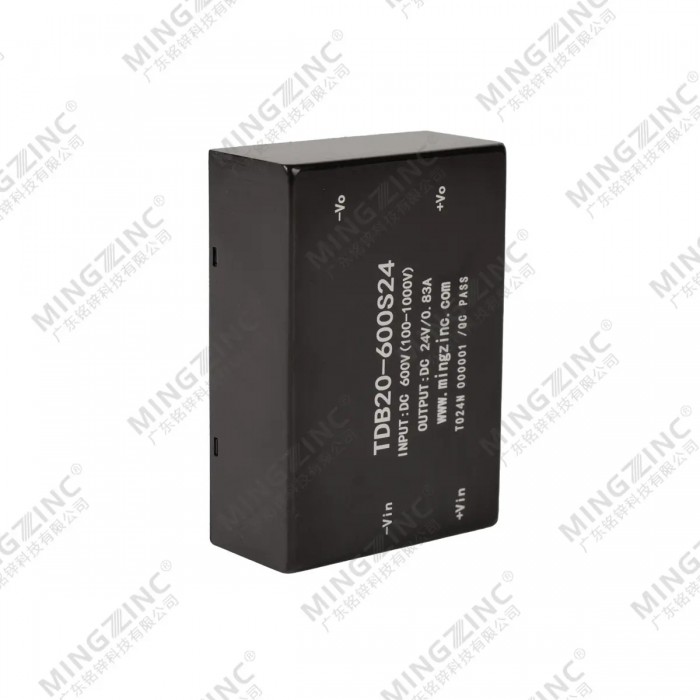

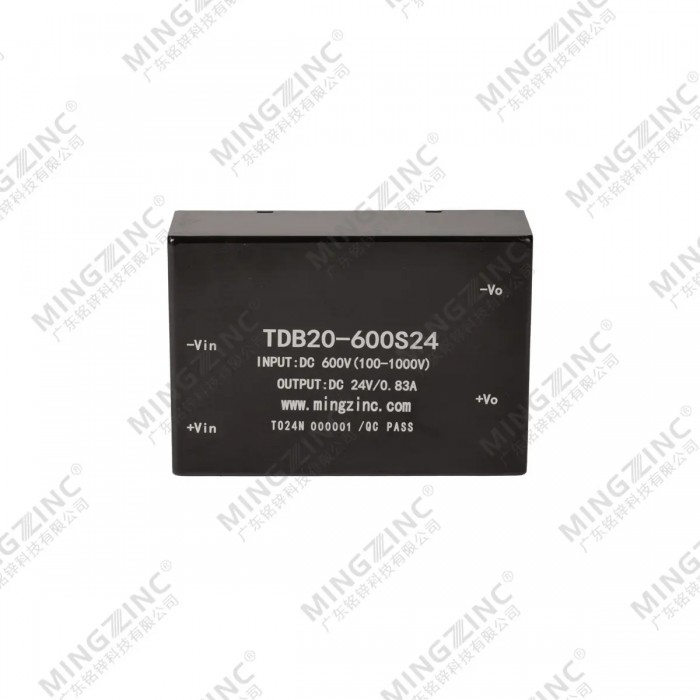

Isolated AC-DC converter module
- Product Details
I.MODELS LIST
Single Channels Output
Model | Input Voltage Range | Input Voltage Rating | Output Voltage | Output Current | Output Power | Efficiency (Typ) |
TDB5-600S05 | 100-1000VDC | 600VDC | 05VDC | 1A | 5W | 70% |
TDB5-600S12 | 100-1000VDC | 600VDC | 12VDC | 0.42A | 5W | 75% |
TDB5-600S24 | 100-1000VDC | 600VDC | 24VDC | 0.23A | 5W | 78% |
TDB10-600S05 | 100-1000VDC | 600VDC | 05VDC | 2A | 10W | 70% |
TDB10-600S12 | 100-1000VDC | 600VDC | 12VDC | 0.9A | 10W | 75% |
TDB10-600S24 | 100-1000VDC | 600VDC | 24VDC | 0.45A | 10W | 78% |
TDB15-600S05 | 100-1000VDC | 600VDC | 05VDC | 3A | 15W | 70% |
TDB15-600S12 | 100-1000VDC | 600VDC | 12VDC | 1.25A | 15W | 75% |
TDB15-600S24 | 100-1000VDC | 600VDC | 24VDC | 0.625A | 15W | 78% |
TDB20-600S05 | 100-1000VDC | 600VDC | 05VDC | 4A | 20W | 70% |
TDB20-600S12 | 100-1000VDC | 600VDC | 12VDC | 1.66A | 20W | 75% |
TDB20-600S24 | 100-1000VDC | 600VDC | 24VDC | 0.83A | 20W | 78% |
TDB25-600S05 | 100-1000VDC | 600VDC | 05VDC | 5.0A | 25W | 70% |
TDB25-600S12 | 100-1000VDC | 600VDC | 12VDC | 2.0A | 25W | 75% |
TDB25-600S24 | 100-1000VDC | 600VDC | 24VDC | 1.0A | 25W | 78% |
Only the typical models are listed. If you need another models , please inform the power , input and output voltage, then feel free to call us.
II. FEATURES
1 | 100-1000VDC Wide voltage input range 100-1000VDC |
2 | High reliability, long life design |
3 | high efficiency |
4 | Industrial-grade technical product design |
5 | Output short-circuit, over-temperature protection |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
INPUT CHARACTERISTIC
Rated value(VDC) | Voltage Range(VDC) |
600VDC | 100-1000VDC |
IV. OUTPUT CHARACTERISTIC
Power | 5-25W |
Output Current | 0-5A |
Output Voltage | 5-24VDC |
Voltage Accuracy | ±1% |
Source Effect | ±0.5% (typ) |
Load Adjustment Rate (10%~100%) | ±2% |
Minimum Load | 0% |
Output Ripple + Noise (peak-to-peak) | 100mv(typ)(20MHz Bandwidth) |
Output Overcurrent Protection | ≥1.1x |
Note: Ripple and noise are tested with the parallel line test method. | |
V. PROTECTIVE CHARACTERISTIC
1 | Input under voltage protection |
2 | Input over voltage protection |
3 | Over temperature protection |
4 | Output over current protection |
5 | Output short circuit protection |
GENERAL CHARACTERISTIC
Switching Frequency | 65-100KHz |
lsolation Resitstance | 200MΩ |
MTBF | >500000 h |
lsolation Voltage
Input-Output | >2000VDC |
Input-Case | >2000VDC |
Output-Case | >500VDC |
Environmental Characteristics
Case Temperature | Industry | -25 – +85℃ |
Military l | -40 – +85℃ | |
Military II | -55 – +85℃ | |
Storage Temperature | Industry | -45 – +105℃ |
Military l | -55 – +105℃ |

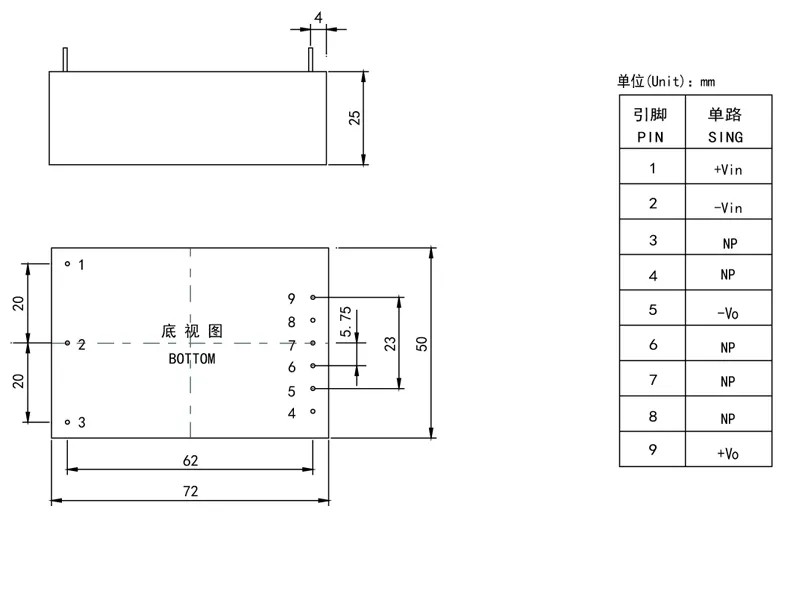

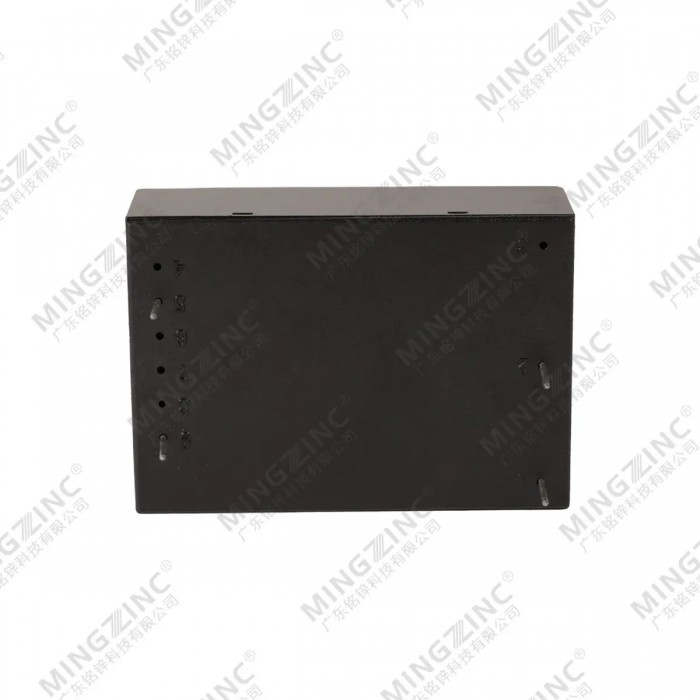

MECHANICAL DRAWING AND PIN DEFINITION
