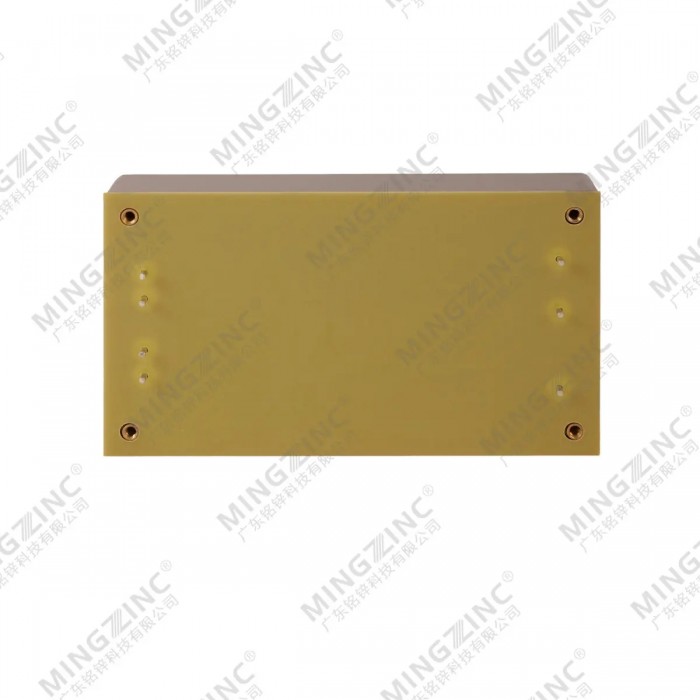

Isolated AC-DC converter module
- Product Details
I.MODELS LIST
Single Channels Output
Models | Input Voltage Range | Input Voltage Rating | Output Voltage | Output Current | Output Power | Efficiency (Typ) |
TDB15-110S05 | 70-140VDC | 110VDC | 05VDC | 3A | 15W | 70% |
TDB20-110S12 | 70-140VDC | 110VDC | 12VDC | 1.66A | 20W | 75% |
TDB30-110S24 | 70-140VDC | 110VDC | 24VDC | 1.25A | 30W | 78% |
TDB15-300S05 | 200-400VDC | 300VDC | 05VDC | 3A | 15W | 70% |
TDB15-300S12 | 200-400VDC | 300VDC | 12VDC | 1.25A | 15W | 75% |
TDB30-300S15 | 200-400VDC | 300VDC | 15VDC | 2A | 30W | 78% |
TDB30-300S24 | 200-400VDC | 300VDC | 24VDC | 1.25A | 30W | 70% |
TDB15-600S05 | 400-800VDC | 600VDC | 05VDC | 3A | 15W | 75% |
TDB20-600S12 | 400-800VDC | 600VDC | 12VDC | 1.66A | 20W | 78% |
TDB25-600S24 | 400-800VDC | 600VDC | 24VDC | 1.04A | 25W | 70% |

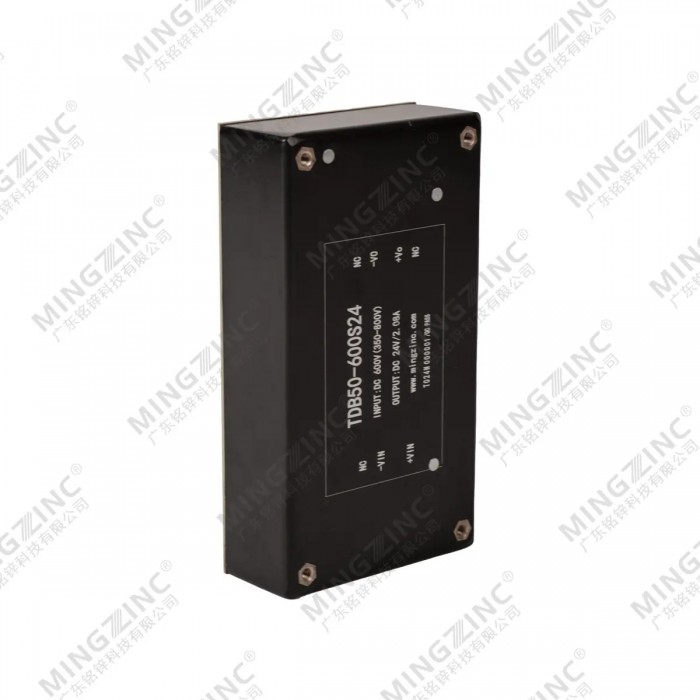

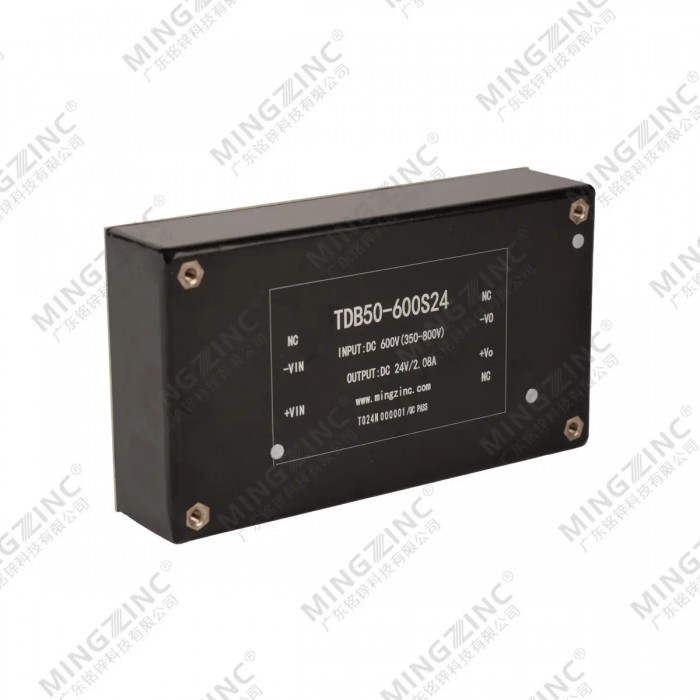

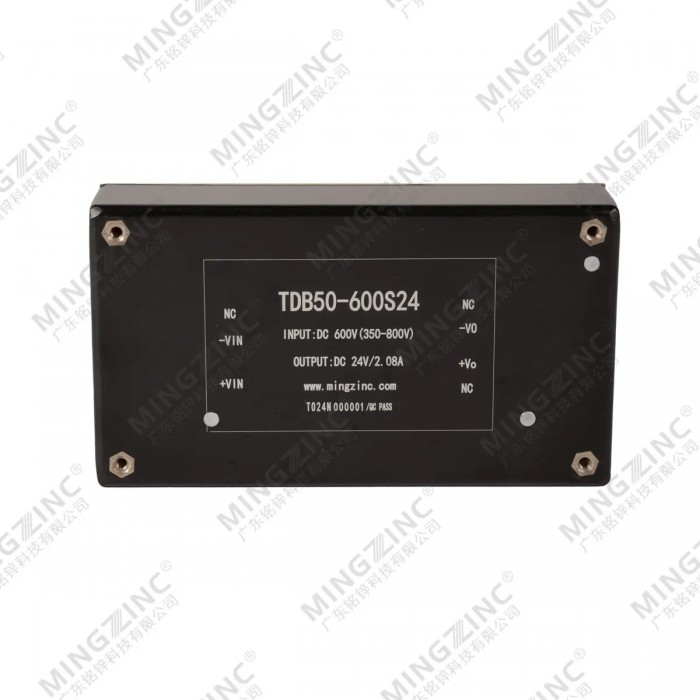

TDB50-600S24 | 400-800VDC | 600VDC | 24VDC | 2.08A | 50W | 70% |
TDB20-800S05 | 100-1000VDC | 800VDC | 05VDC | 4A | 20W | 75% |
Only typical models listed. If you need other models,please conform the power ,input voltage and output voltage, then feel free to call us.
II. FEATURES
1 | Wide range of input voltage |
2 | Design for high reliability,long lifetime |
3 | Under-&over-voltage protection for output |
4 | Iag 92% Full load efficiency up to 92% |
5 | Fast dynamic response |
6 | 26W/in³ UP to 26W/in³ power density |
7 | High voltage input , high output power |
8 | Wide range of power ,easy to upgrade |
INPUT CHARACTERISTIC
Rated value(VDC) | Voltage Range(VDC) |
110 VDC | 70-140VDC |
300 VDC | 200-400VDC |
600VDC | 400-800VDC |
800VDC | 100-1000VDC |
IV. OUTPUT CHARACTERISTIC
Power | 15-50W |
Output Current | 0-4A |
Output Voltage | 5-24VDC |
Voltage Set-point Accuracy | ±0.2% |
Line Regulation | ±0.5% |
Load Regulation | ±0.4% |
rate of change of temperature | ±0.01%/℃ |
Output Current Limting | 120%(Typ) |
response time | 400μs |
GENERAL CHARACTERISTIC
Switching Frequency | 160-200KHz |
Isolation Resitstance | 200MΩ |
MTBF | >500000 h |
lsolation Voltage
Input-Output | >2000VDC |
Input-Case | >2000VDC |
Output-Case | >500VDC |
Environmental Characteristics
Case Temperature | Industry | -25 – +85℃ |
Military l | -40 – +85℃ | |
Military II | -55 – +85℃ | |
Storage Temperature | Industry | -45 – +105℃ |
Military l | -55 – +105℃ |

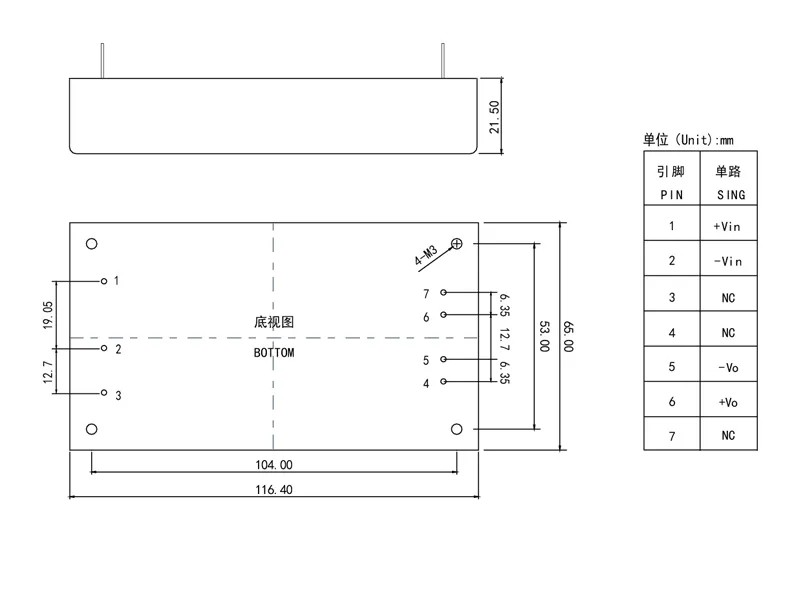

MECHANICAL DRAWING AND PIN DEFINITION
