High-Efficiency 12V Auxiliary Power for PV Controllers, Trackers, and Monitoring Nodes
In modern Solar Photovoltaic (PV) and Battery Energy Storage Systems (BESS), the 48VDC bus is the industry standard. However, the critical "brain" of the system—comprising communication modules, sensors, solar trackers, and cooling fans—typically requires a stabilized 12VDC supply.

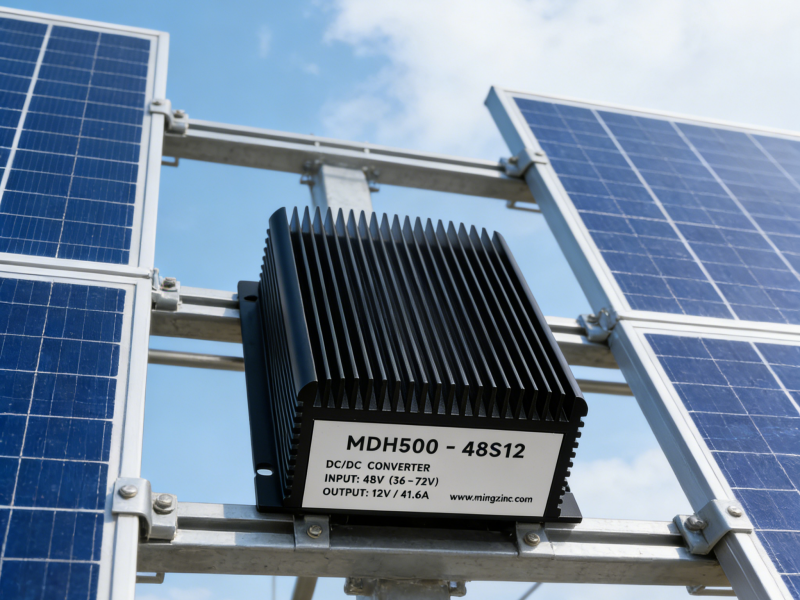

The MDH500-48S12 by Guangdong Mingxin Technology is a ruggedized 500W isolated DC-DC converter specifically engineered for the solar industry. With an IP65 rating and a wide input range, it ensures mission-critical 12V electronics remain powered even under harsh outdoor conditions.
I. Technical Specifications: MDH500-48S12
| Feature | Performance Detail |
| Model | MDH500-48S12 |
| Rated Power | 500W |
| Input Voltage | 48VDC (Operating Range: 36V–72VDC) |
| Output Voltage | 12VDC |
| Output Current | 41.67A |
| Ingress Protection | IP65 Waterproof & Dustproof |
| Isolation | Input-to-Output Galvanic Isolation |
| Cooling | Natural Convection (Sealed Aluminum Fins) |
| Dimensions | 200 × 158 × 72 mm |
| Compliance | Meets UL1950, IEC950 Standards |
II. Key Applications in Solar Energy Systems
The MDH500-48S12 serves as the "Universal Power Bridge" for:
Solar Tracking Systems: Providing high-current 12V power for motor drives that align panels with the sun.
Off-Grid Energy Storage: Converting 48V battery bank power for 12V LED lighting, DC appliances, and IoT gateways.
PV Monitoring & Data Logging: Ensuring zero-interference power for RS485/LoRa/5G communication modules and smart meters.
System Cooling: Powering 12V thermal management fans in sealed inverter cabinets to prevent overheating.
Security & Surveillance: Direct 12V supply for outdoor PTZ cameras and perimeter sensors at solar farms.
III. Why Choose the MDH500-48S12 for PV Environments?
1. Ultra-Wide Input for Battery Fluctuations
Solar battery banks experience significant voltage swings during charge/discharge cycles. Our converter supports a wide 36V to 72V input, ensuring the 12V output remains rock-steady regardless of battery state-of-charge.
2. IP65 Rated for Outdoor Durability
PV installations are exposed to rain, dust, and high humidity. The MDH500 series features a fully encapsulated aluminum housing, protecting internal components from corrosion and environmental ingress.
3. Electrical Isolation & Surge Protection
High-voltage transients from solar arrays or lightning can destroy low-voltage electronics. Our galvanic isolation design acts as a safety barrier, protecting your monitoring and control equipment from common-mode noise and surges.
4. Advanced Thermal Dissipation
Designed for fanless operation, the integrated cooling fins allow the unit to thrive in high-ambient temperature outdoor enclosures. This eliminates the fan—the most frequent failure point in outdoor power supplies—drastically increasing MTBF (Mean Time Between Failures).
IV. Built-in Intelligence & Protection
Input Protection: Under-voltage and over-voltage lockout.
Output Protection: Continuous short-circuit and over-load protection with auto-recovery.
Thermal Protection: Over-temperature shutdown to prevent catastrophic failure in extreme heat.
V. Customization & Engineering Support
As a leader in power conversion, Guangdong Mingxin Technology offers flexible customization for PV projects:
Extended Input Voltages: Options available from 18V up to 800VDC.
Multi-Rail Outputs: Custom 12V/24V/5V dual-output configurations.
Bespoke Form Factors: Custom mounting brackets and terminal types for specific cabinet requirements.
Partner with Mingxin Technology
Located in the Gaosheng Industrial Park, Dongguan, we are an R&D-driven manufacturer specializing in AC-DC and DC-DC modules for Renewable Energy, Industrial Automation, and Telecom.
