I. Industry Background: Why Stability Matters for Surveillance
Modern security systems in Smart Cities, industrial parks, and traffic monitoring rely on 24VDC centralized power. Continuous 24/7 operation demands a power source that can handle grid fluctuations, suppress noise, and withstand harsh outdoor environments.

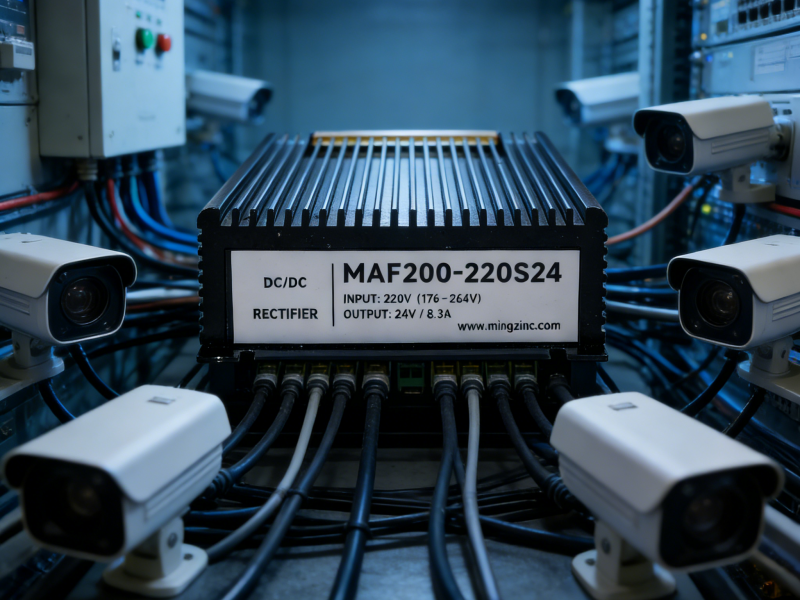

MAF200-220S24 is specifically engineered to meet these challenges:
200W High-Efficiency isolated conversion.
IP65 Rating for superior dust and water resistance.
Industrial-Grade Reliability for centralized camera arrays.
II. Core Technical Specifications
| Parameter | Specifications |
| Model | MAF200-220S24 |
| Rated Power | 200W |
| Input Voltage | 176 – 264VAC |
| Output Voltage | 24VDC (8.3A) |
| Enclosure | Sealed Aluminum Alloy with Cooling Fins |
| Protection | IP65 Waterproof |
| Safety Standard | Compliant with UL1950, IEC950 |
III. Key Application Scenarios
Centralized Surveillance Power: Ideal for industrial parks, highway monitoring, and parking networks. It converts 220VAC into a stable 24VDC bus for multiple cameras and PTZ controllers.
Harsh Outdoor Environments: Perfect for outdoor weak current boxes, high-humidity sites, and dusty industrial zones.
IV. Core Technical Advantages
Wide Input Range (176–264VAC): Maintains stable 24V output despite long-distance cable voltage drops or grid instability.
Surge Suppression: Built-in soft-start circuitry reduces inrush current, protecting the grid and extending system lifespan.
Low Ripple & EMI Filtering: Suppresses high-frequency interference to ensure crystal-clear video footage without flickering or signal loss.
High Isolation Design: Protects sensitive back-end monitoring equipment from high-voltage coupling and lightning-induced surges.
V. Industrial-Grade Protection & Heat Dissipation
Fanless Design: Uses a sealed aluminum shell with fins for natural convection, reducing noise and mechanical failure points.
IP65 Protection: Fully potted with thermally conductive material to resist moisture, vibration, and industrial pollutants.
Smart Safety: Built-in protection against under-voltage, over-current, short-circuits, and over-temperature with auto-recovery.
VI. Why Choose MAF200-220S24?
✔ 200W Stable Output (24V 8.3A)
✔ Industrial-grade isolated and waterproof structure
✔ Low ripple and high EMI suppression for stable video
✔ Designed for 7×24h continuous operation in extreme conditions
