Why Power Substations Need Ultra-High Voltage DC Power Conversion？
In high-voltage power substations, the DC auxiliary power system is the lifeline that keeps protection relays, SCADA systems, and communication equipment running. When this power chain fails, the consequences are severe:
• Protection relay malfunction during fault conditions
• SCADA communication loss between substation and control center
• Circuit breaker failure to trip on demand
• Uncontrolled power outages affecting thousands of consumers
• Equipment damage from sustained fault currents
Substation environments impose extreme demands on power equipment: high-voltage transients, electromagnetic interference from switchgear operations, wide temperature swings, and the need for uninterrupted 24/7 operation. Conventional power modules simply cannot withstand these conditions.

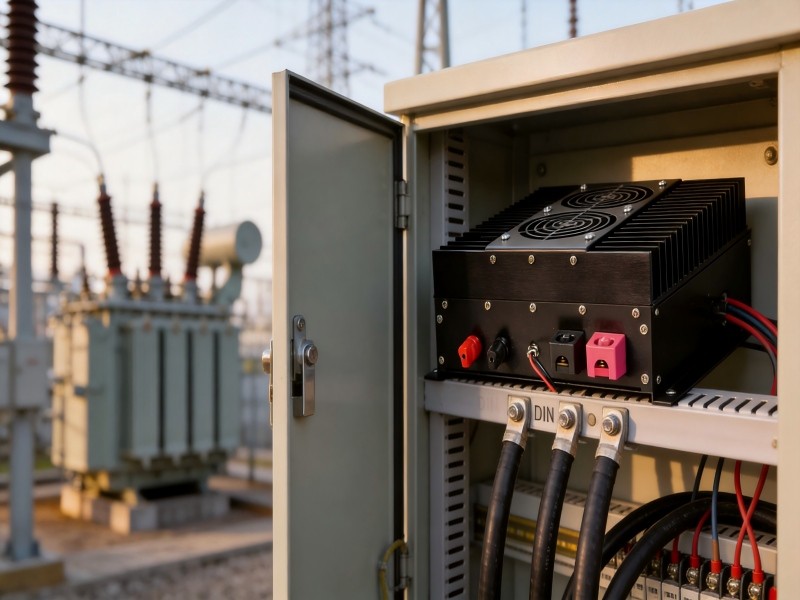

MDN4000-360S48: 4000W Ultra-High Voltage Isolated DC-DC Converter
The MDN4000-360S48 is a high-power isolated DC-DC converter specifically engineered for power automation and ultra-high voltage input applications.
Key Specifications:
Parameter | Value |
Input Voltage | 360VDC (Range: 280–500VDC) |
Output Voltage | 48VDC |
Output Current | 83.3A |
Output Power | 4000W |
Efficiency | 93% |
Isolation | Input-output dual electrical isolation |
Communication | CAN bus |
Cooling | Fan cooling + internal thermal potting |
Protection Rating | IP65 |
Dimensions | 301 × 261 × 124mm |
Multiple ultra-high voltage input ranges available:
Option | Input Voltage Range |
Standard | 280–500VDC |
Extended Range 1 | 350–750VDC |
Extended Range 2 | 400–850VDC |
Extended Range 3 | 600–1100VDC |
Extended Range 4 | 900–1500VDC |
Power options from 3000W to 6000W. Contact us for customization.
The fully sealed aluminum housing with internal potting provides exceptional resistance against:
• Moisture and humidity
• Dust and particulate contamination
• Vibration and mechanical shock
• Electromagnetic interference from switchgear operations
Why It Fits Power Substation Automation？
Power substations operate with DC bus voltages ranging from 220V to 800V+ and require reliable conversion to 48V for communication and control equipment. The MDN4000-360S48 addresses these demands directly:
Ultra-wide input range (280–500VDC) — absorbs voltage fluctuations from the substation DC bus without output disruption, with additional ranges available up to 1500VDC for high-voltage applications.
Dual electrical isolation (input-to-output) — protects both downstream equipment and personnel from high-voltage transients, a critical safety requirement in substations.
Surge and spike suppression — effectively suppresses surges, spikes, and EMI from switchgear operations, protecting sensitive SCADA and relay equipment.
IP65 + full potting — withstands the harsh environmental conditions found in outdoor substations: humidity, dust, temperature extremes, and vibration.
Built-in protections:
• Input undervoltage protection
• Input overvoltage protection
• Overtemperature protection
• Output overcurrent protection
• Short-circuit protection
These comprehensive protections ensure uninterrupted operation and prevent cascading failures in critical power infrastructure.
Conclusion
For power substation automation, reliable DC power conversion is not optional — it is essential for grid safety and stability.
The MDN4000-360S48 combines 4000W high power output, ultra-high voltage input with multiple range options, dual electrical isolation, IP65 protection, 93% high efficiency, and CAN communication into a rugged DC-DC solution purpose-built for the demanding conditions of power substation automation.
For more details, custom input range options, or to request a sample, contact our engineering team.
