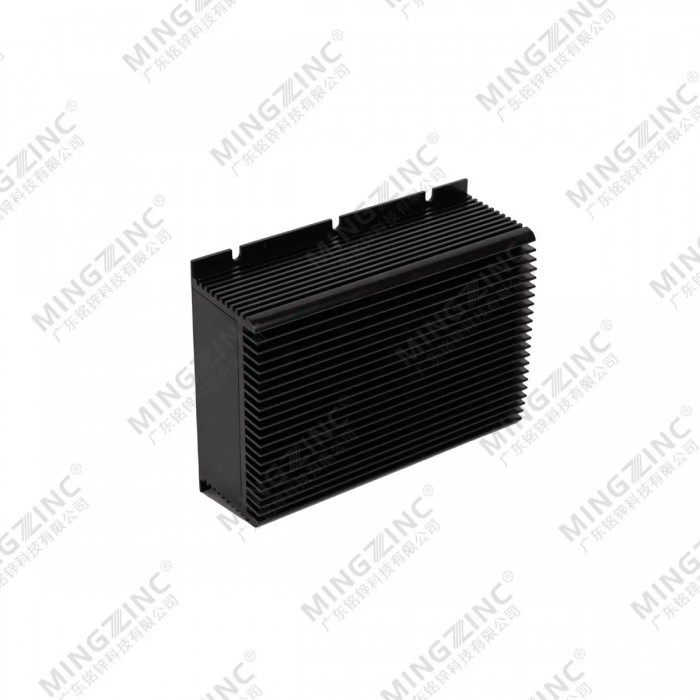

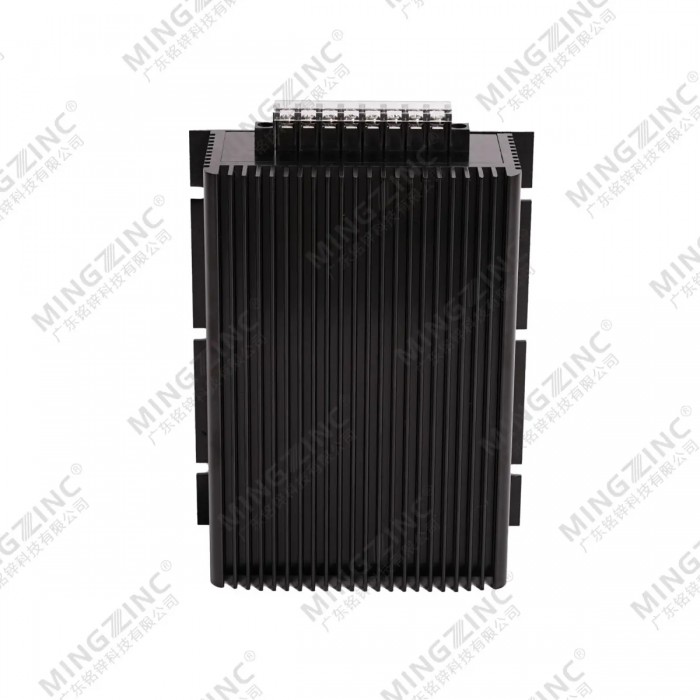

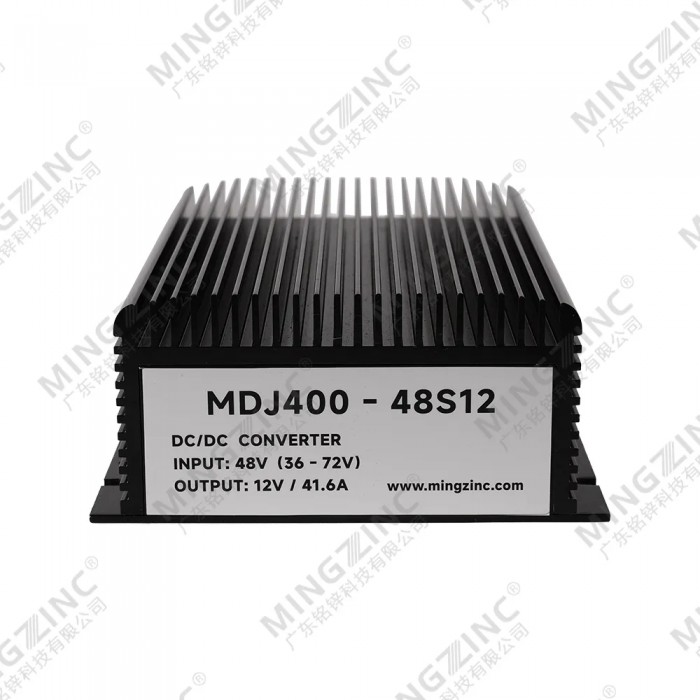

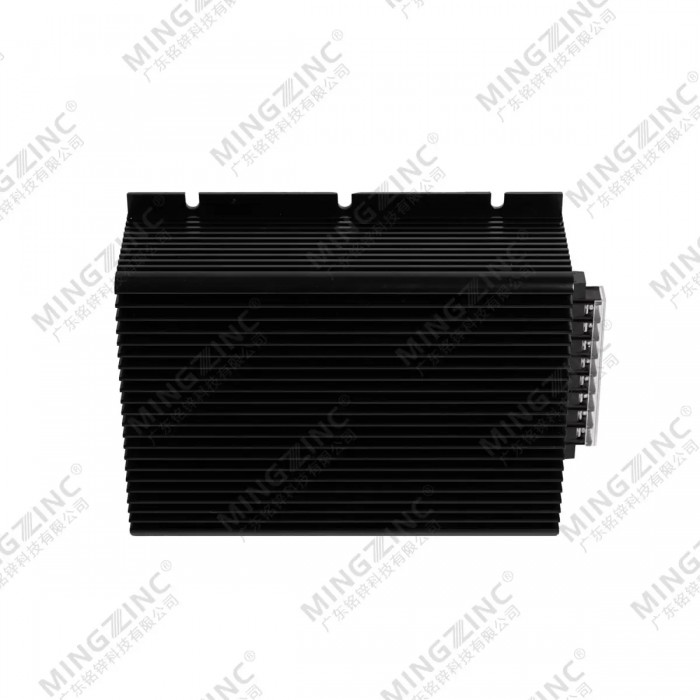

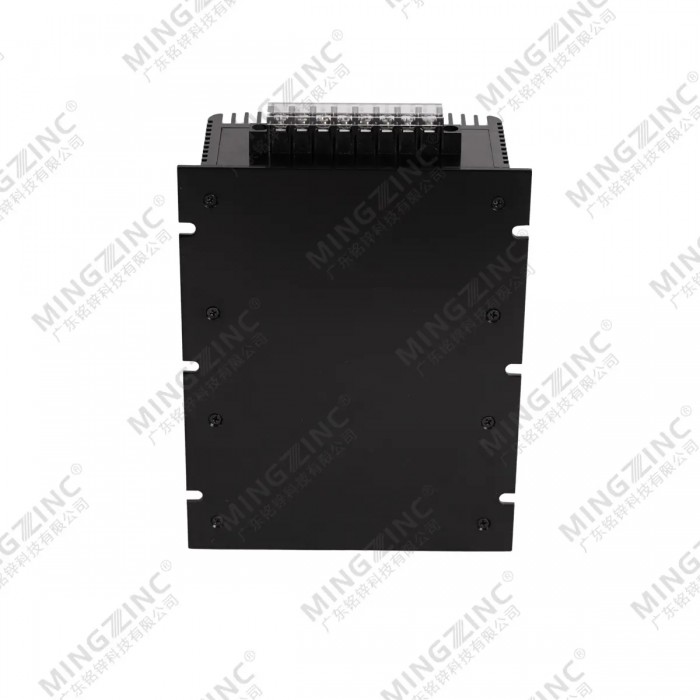

Isolated AC-DC converter module
- Product Details
I. MODELS LIST
Single Channels Output
Model | Input voltage Range | Input voltage Rating | Output voltage | Output current | Output Power | Efficiency (Typ) |
MDJ200-12S12 | 9-18VDC | 12VDC | 12VDC | 16.67A | 200W | 87% |
MDJ150-18S24 | 9-36VDC | 28VDC | 24VDC | 6.25A | 150W | 86% |
MDJ300-12S24 | 9-18VDC | 12VDC | 24VDC | 12.5A | 300W | 86% |
MDJ400-24S12 | 18-36VDC | 24VDC | 12VDC | 33.3A | 400W | 88% |
MDJ330-24S110 | 18-36VDC | 24VDC | 110VDC | 3A | 330W | 88% |
MDJ400-110S12 | 66-154VDC | 110VDC | 12VDC | 33.3A | 400W | 88% |
MDJ400-110S24 | 66-154VDC | 110VDC | 24VDC | 16.7A | 400W | 89% |
MDJ400-110S48 | 66-154VDC | 110VDC | 48VDC | 8.3A | 400W | 90% |
MDJ300-600S24 | 400-800VDC | 600VDC | 24VDC | 12.5A | 300W | 90% |
Only the typical models are listed. If you need another models , please inform the power,input and output voltage,then feel free to call us.
II. FEATURES
1 | Fast dynamic response |
2 | Good heat dissipation with beautiful appearance |
3 | High efficiency |
4 | Natural cooling Additional radiator available |
5 | High and low voltage inputs selectable |
6 | Attractive outline design |
7 | Can be used in the solar photovoltaic industry |
8 | Π type input filter |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
Rated value(VDC) | Voltage Range(VDC) |
12VDC | 9-18VDC |
18VDC | 9-36VDC |
24VDC | 18-36VDC |
110VDC | 66-154VDC |
600VDC | 400-800VDC |
IV. OUTPUT CHARACTERISTIC
Parameter | Value |
Power | 150-400W |
Voltage Set-point Accuracy | ±2% |
Output Current | 5-50A |
Output Voltage | 5-110VDC |
Output Voltage Range | ±10% |
Line Regulation | ±0.5% |
Load Regulation | ±0.5% |
Output Current Limiting | 120%(Typ) |
V. PROTECTIVE CHARACTERISTIC
1 | Input under voltage protection |
2 | Input over voltage protection |
3 | Over temperature protection |
4 | Output over current protection |
5 | Output short circuit protection |
GENERAL CHARACTERISTIC
Parameter | Value |
Switching Frequency | 100-200KHz |
lsolation Resistance | 200MΩ |
lsolation Voltage
Parameter | Value |
Input-Output | >1500VDC |
Input-Case | >1050VDC |
Output-Case | >500VDC |
Environmental Characteristics
Parameter | Value | |
Case Temperature | Industry | -25 – +85℃ |
Military l | -40 – +85℃ | |
Military II | -55 – +85℃ | |
Storage Temperature | Industry | -45 – +105℃ |
Military l | -55 – +105℃ | |

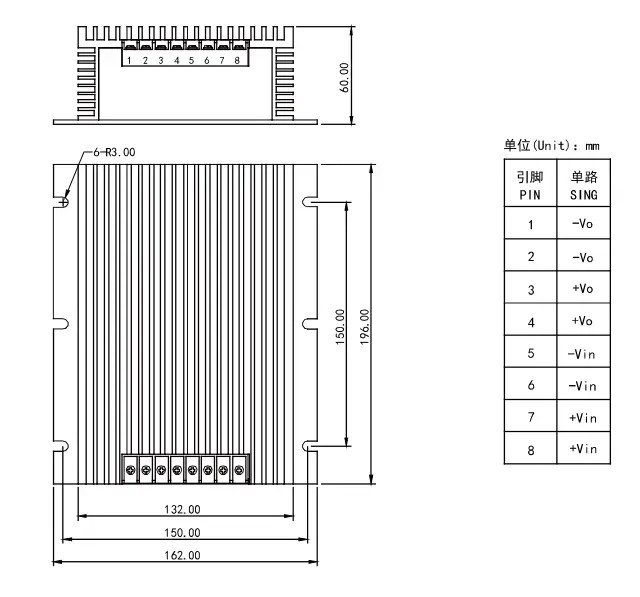

VI. MECHANICAL DRAWING AND PIN DEFINITION
