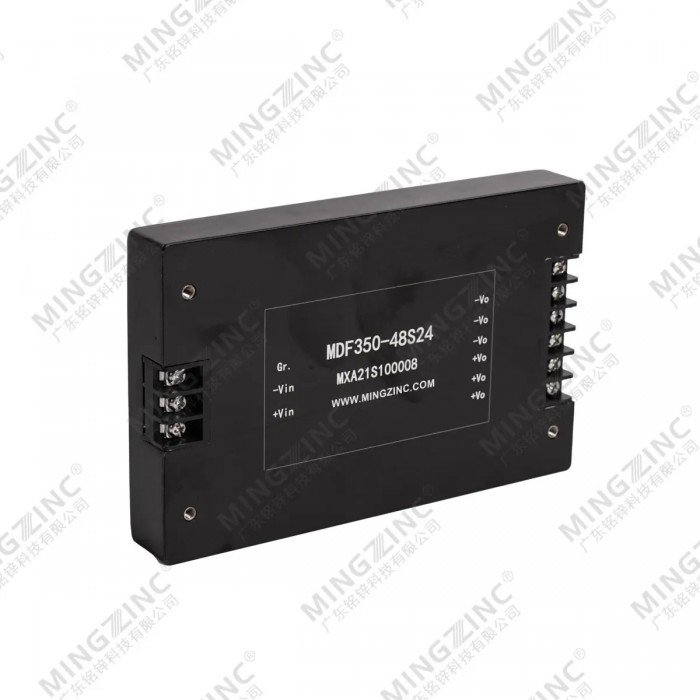

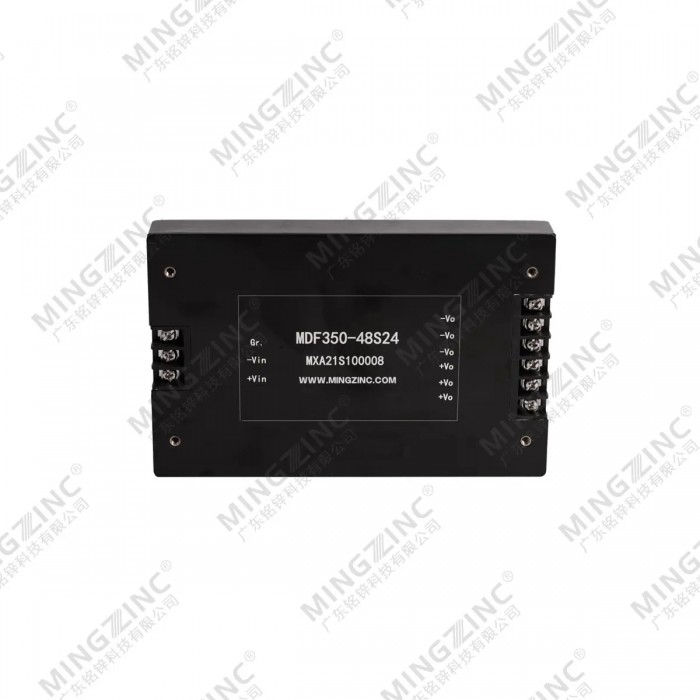

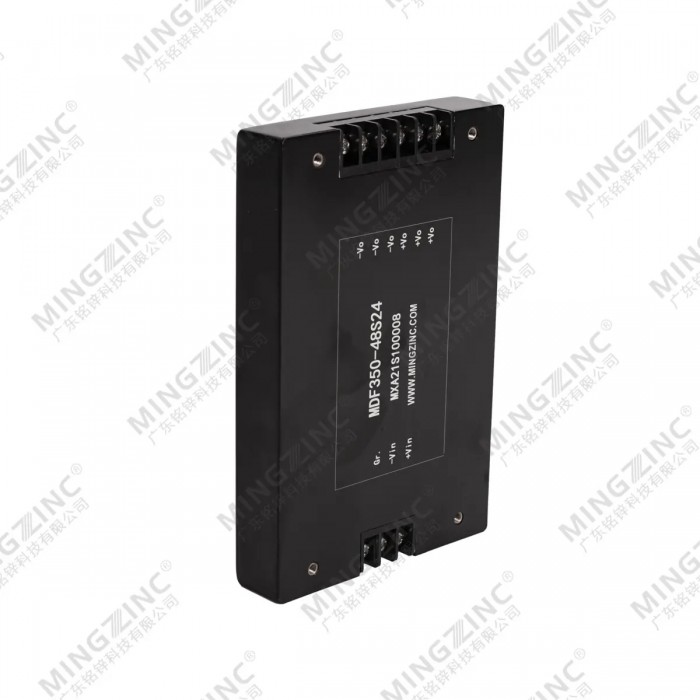

Isolated AC-DC converter module
- Product Details
I. MODELS LIST
Single Channels Output
Model | Input Voltage Range | Input Voltage Rating | Output Voltage | Output Current | Output Power | Efficiency (Typ) |
MDF350-24S24 | 18-36VDC | 24VDC | 24VDC | 14.58A | 350W | 89% |
MDF350-48S24 | 36-72VDC | 48VDC | 24VDC | 14.58A | 350W | 89% |
MDF300-110S12 | 66-154VDC | 110VDC | 12VDC | 25A | 300W | 88% |
MDF300-110S24 | 66-154VDC | 110VDC | 24VDC | 12.5A | 300W | 89% |
MDF300-600S24 | 400-800VDC | 600VDC | 24VDC | 12.5A | 300W | 89% |
Dual Channels Output
Model | Input Voltage Range | Input Voltage Rating | Output Voltage | Output Current | Output Power | Efficiency (Typ) |
MDF170-24D05&12 | 18-36VDC | 24VDC | 05&12VDC | 10A&10A | 170W | 84% |
MDF170-24D05&24 | 18-36VDC | 24VDC | 05&24VDC | 10A&5A | 170W | 84% |
Three Channels Output
Model | Input Voltage Range | Input Voltage Rating | Output Voltage | Output current | Ripple and noise(mv) | Efficiency (Typ) |
MDF230-24T05&12&24 | 18-36VDC | 24VDC | 05&12&24VDC | 6&8&4A | 80&120&200 | 84% |
MDF230-48T05&12&24 | 36-72VDC | 48VDC | 05&12&24VDC | 6&8&4A | 80&120&200 | 84% |
Only the typical models are listed. If you need another models,please inform the power, input and output voltage, then feel free to call us.
II. FEATURES
1 | Π type input filter |
2 | High power density |
3 | 2X.4X voltage input |
4 | Design for high reliability, long lifetime |
5 | Easy installation, dual side pin out |
6 | Attractive outline design |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
Rated value(VDC) | Voltage Range(VDC) |
12 VDC | 9-18 VDC |
24 VDC | 18-36 VDC |
48 VDC | 36-72 VDC |
110 VDC | 66-154 VDC |
18 VDC | 9-36 VDC |
IV. OUTPUT CHARACTERISTIC
Parameter | Value |
Power | 100-350W |
Output Voltage | 5-48VDC |
Output Current | 3-40A |
Line Regulation | ±0.5% |
Load Regulation | ±0.5% |
Voltage Set-point Accuracy | ±2% |
Output Current Limiting | 120%(Typ) |
V. PROTECTIVE CHARACTERISTIC
1 | Input under voltage protection |
2 | Input over voltage protection |
3 | Over temperature protection |
4 | Output over current protection |
5 | Output short circuit protection |
GENERAL CHARACTERISTIC
Parameter | Value |
Switching Frequency | 100-200KHz |
lsolation Resistance | 200MΩ |
lsolation Voltage
Parameter | Value |
Input-Output | >1500VDC |
Input-Case | >1050VDC |
Output-Case | >500VDC |
Environmental Characteristics
Parameter | Value | |
Case Temperature | Industry | -25 – +85℃ |
Military l | -40 – +85℃ | |
Military II | -55 – +85℃ | |
Storage Temperature | Industry | -45 – +105℃ |
Military l | -55 – +105℃ | |

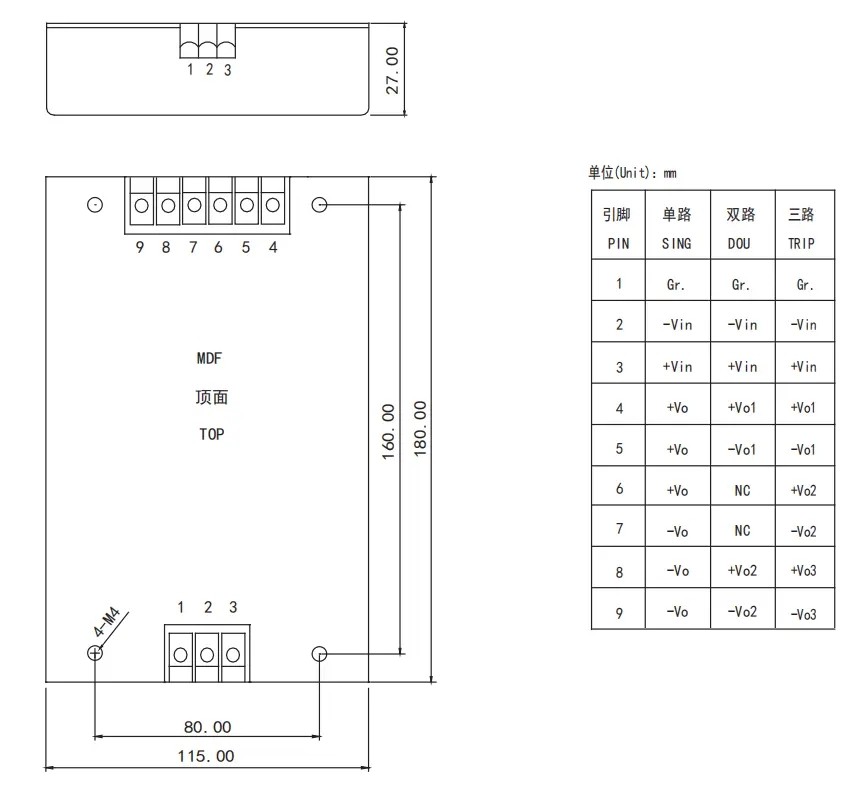

VI. MECHANICAL DRAWING AND PIN DEFINITION
