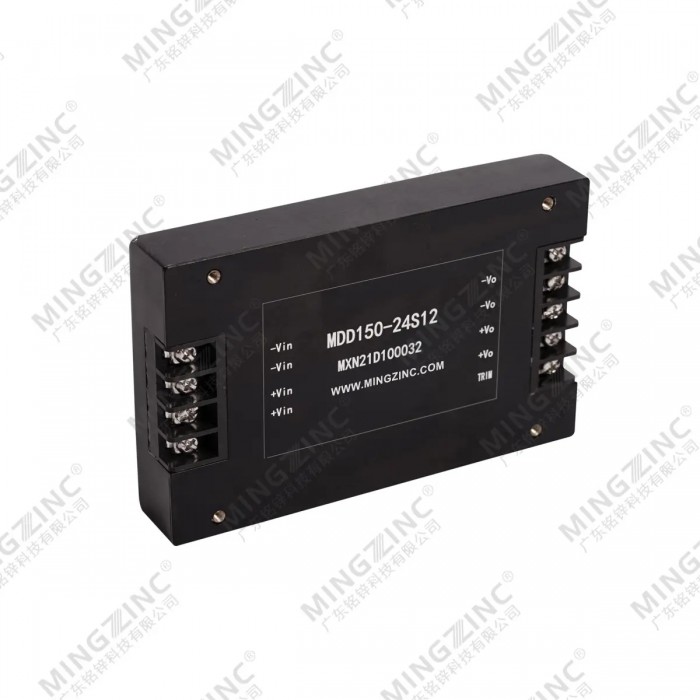

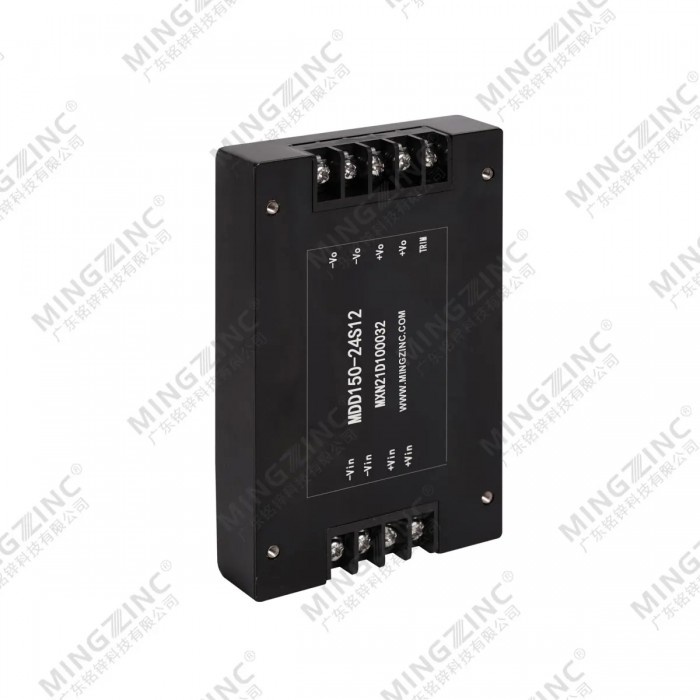

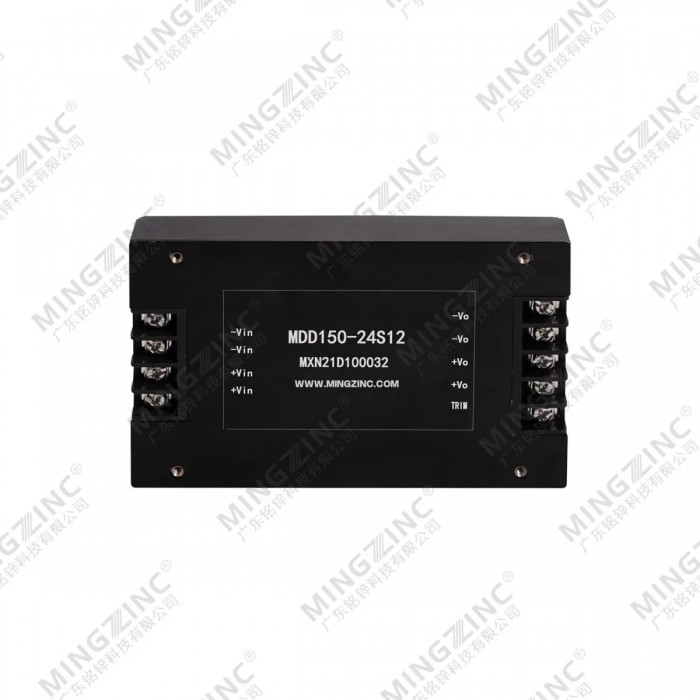

Isolated AC-DC converter module
- Product Details
I. MODELS LIST
Single Channels Output
Model | Input Voltage Range | Input Voltage Rating | Output Voltage | Output Current | Output Power | Efficiency (Typ) |
MDD75-550S24 | 200-800VDC | 500VDC | 24VDC | 3.13A | 75W | 78% |
MDD100-600S12 | 400-800VDC | 600VDC | 12VDC | 8.33A | 100W | 80% |
MDD40-650S15 | 100-1200VDC | 650VDC | 15VDC | 2.67A | 40W | 76% |
MDD100-800S24 | 300-1300VDC | 800VDC | 24VDC | 4.16A | 100W | 86% |
Only the typical models are listed. If you need another models, Please inform the power, Input and output voltage,then feel free to call us.
II. FEATURES
1 | Fast dynamic response |
2 | Good heat dissipation with beautiful appearance |
3 | High efficiency |
4 | Natural cooling Additional radiator available |
5 | High and low voltage inputs selectable |
6 | Attractive outline design |
7 | Can be used in the solar photovoltaic industry |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
Rated value(VDC) | Voltage Range(VDC) |
550 VDC | 200-800 VDC |
600VDC | 400-800 VDC |
650VDC | 100-1200 VDC |
800VDC | 300-1300VDC |
IV. OUTPUT CHARACTERISTIC
Parameter | Value |
Power | 40-200W |
Voltage Set-point Accuracy | ±2% |
Output Current | 2-20A |
Output Voltage | 5-48VDC |
Output Voltage Range | ±10% |
Line Regulation | ±0.5% |
Load Regulation | ±0.5% |
Output Current Limiting | 120%(Typ) |
V. PROTECTIVE CHARACTERISTIC
1 | Input under voltage protection |
2 | Input over voltage protection |
3 | Over temperature protection |
4 | Output over current protection |
5 | Output short circuit protection |
GENERAL CHARACTERISTIC
Parameter | Value |
Switching Frequency | 100-200KHz |
lsolation Resistance | 200MΩ |
lsolation Voltage
Parameter | Value |
Input-Output | >1500VDC |
Input-Case | >1050VDC |
Output-Case | >500VDC |
Environmental Characteristics
Parameter | Value | |
Case Temperature | Industry | -25 – +85℃ |
Military l | -40 – +85℃ | |
Military II | -55 – +85℃ | |
Storage Temperature | Industry | -45 – +105℃ |
Military l | -55 – +105℃ | |

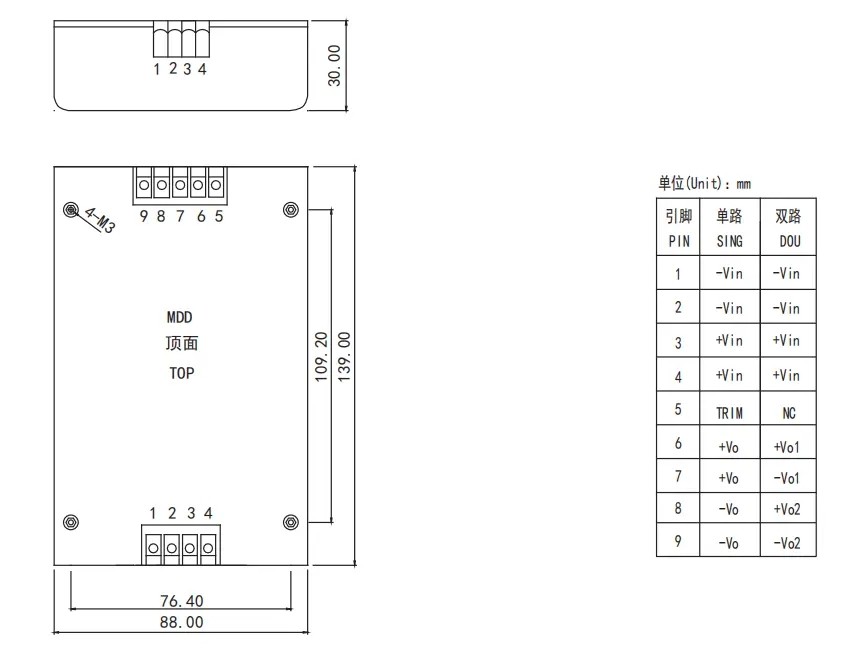

VI. MECHANICAL DRAWING AND PIN DEFINITION
