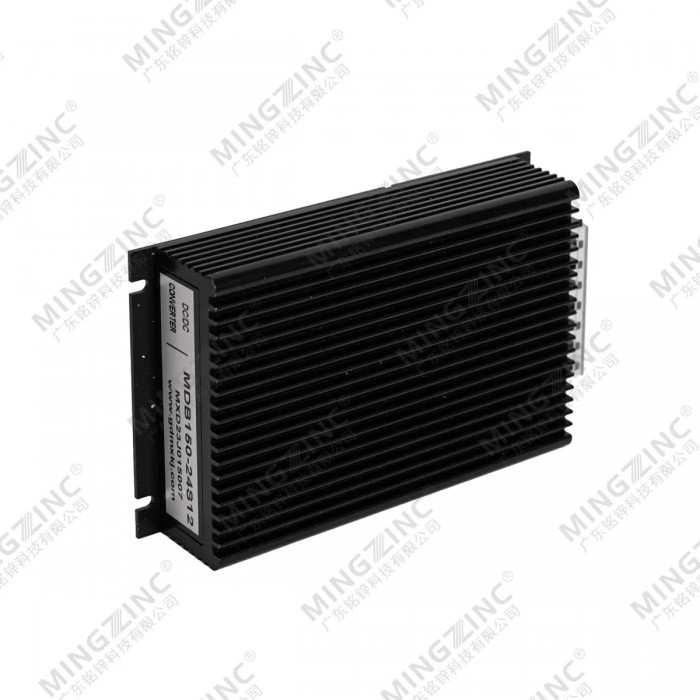

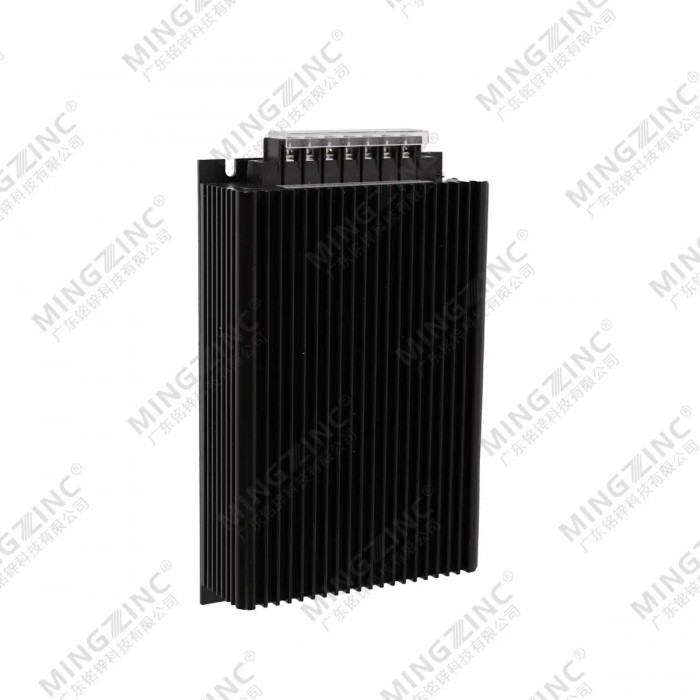

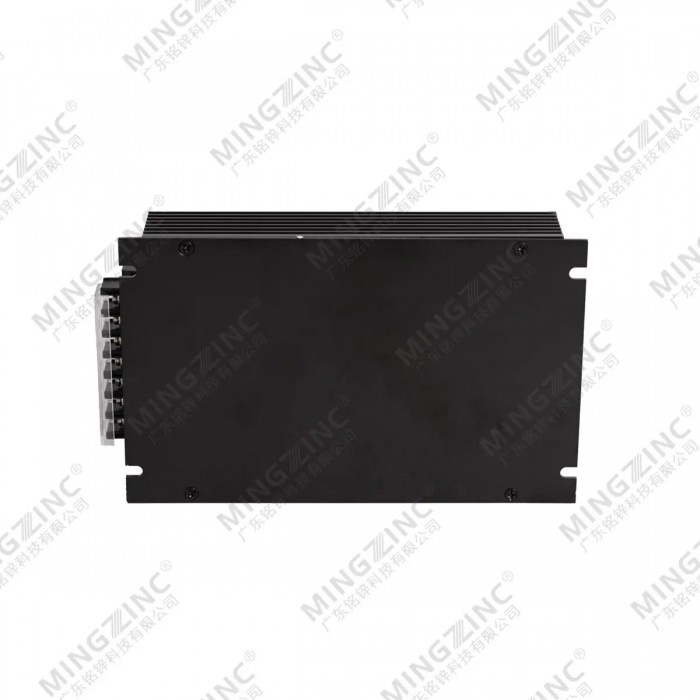

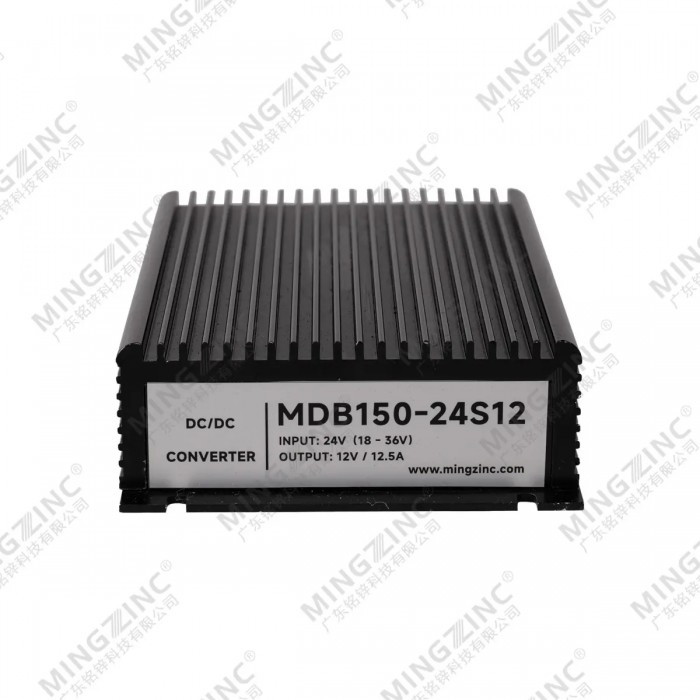

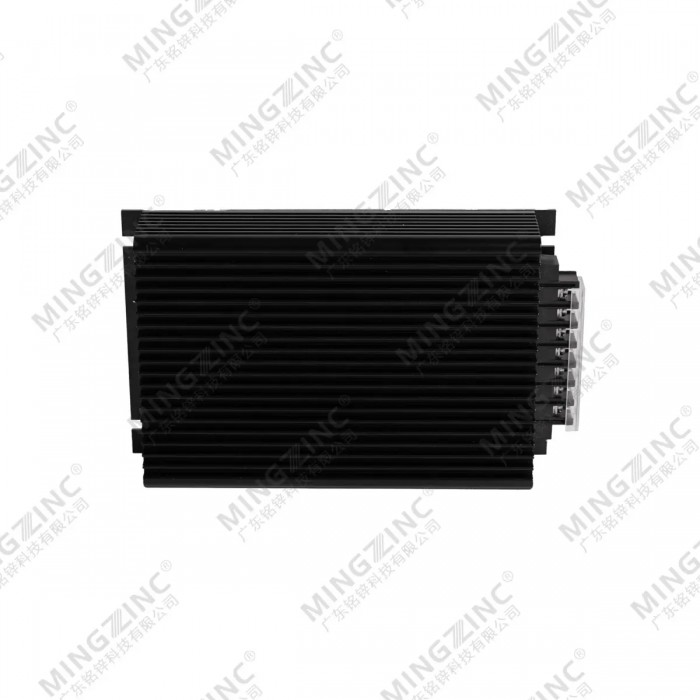

Isolated AC-DC converter module
- Product Details
I. MODELS LIST
Single Channels Output
Model | Input Voltage Range | Input Voltage Rating | Output voltage | Output Current | Output Power | Efficiency (Typ) |
MDB100-18S12 | 9-36VDC | 18VDC | 12VDC | 8.33A | 100W | 83% |
MDB100-18S24 | 9-36VDC | 18VDC | 24VDC | 4.16A | 100W | 84% |
MDB150-24S12 | 18-36VDC | 24VDC | 12VDC | 12.5A | 150W | 84% |
MDB150-24S24 | 18-36VDC | 24VDC | 24VDC | 6.25A | 150W | 86% |
MDB150-48S12 | 36-72VDC | 48VDC | 12VDC | 12.5A | 150W | 85% |
MDB200-48S24 | 36-72VDC | 48VDC | 24VDC | 6.25A | 200W | 86% |
MDB150-110S12 | 66-154VDC | 110VDC | 12VDC | 12.5A | 150W | 84% |
MDB200-110S24 | 66-154VDC | 110VDC | 24VDC | 8.33A | 200W | 86% |
MDB200-110S48 | 66-154VDC | 110VDC | 48VDC | 4.16A | 200W | 86% |
Dual Channels Ouput
Model | Input Voltage Range | Input voltage Rating | Output voltage | Output current(A) | Output Power | Efficiency (Typ) |
MDB150-24D05&12 | 18-36VDC | 24VDC | 05&12VDC | 10A&8.33A | 150W | 82% |
MDB150-24D12&24 | 18-36VDC | 24VDC | 12&24VDC | 4A&4.16A | 150W | 83% |
MDB150-24D05&24 | 18-36VDC | 24VDC | 05&24VDC | 10A&4.16 | 150W | 83% |
Only the typical models are listed. If you need another models, please inform the power,Input and output voltage,then feel free to call us.
II. FEATURES
1 | Can be used in the solar photovoltaic industry |
2 | Good heat dissipation with beautiful appearance |
3 | High efficiency |
4 | Natural cooling |
5 | High and low voltage inputs selectable |
6 | Attractive outline design |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
Rated value(VDC) | Voltage Range(VDC) |
12 VDC | 9-18 VDC |
24 VDC | 18-36 VDC |
48 VDC | 36-72 VDC |
110 VDC | 66-154 VDC |
18 VDC | 9-36 VDC |
IV. OUTPUT CHARACTERISTIC
Parameter | Value |
Power | 40-200W |
Output Voltage | 5-48VDC |
Output Current | 2-20A |
Line Regulation | ±0.5% |
Load Regulation | ±0.5% |
Voltage Set-point Accuracy | ±2% |
Output Current Limiting | 120%(Typ) |
V. PROTECTIVE CHARACTERISTIC
1 | Input under voltage protection |
2 | Input over voltage protection |
3 | Over temperature protection |
4 | Output over current protection |
5 | Output short circuit protection |
V. PROTECTIVE CHARACTERISTIC
1 | Input under voltage protection |
2 | Input over voltage protection |
3 | Over temperature protection |
4 | Output over current protection |
5 | Output short circuit protection |
GENERAL CHARACTERISTIC
Parameter | Value |
Switching Frequency | 100-200KHz |
lsolation Resitstance | 200MΩ |
lsolation Voltage
Parameter | Value |
Input-Output | >1500VDC |
Input-Case | >1050VDC |
Output-Case | >500VDC |
Environmental Characteristics
Parameter | Value | |
Case Temperature | Industry | -25 – +85℃ |
Military l | -40 – +85℃ | |
Military II | -55 – +85℃ | |
Storage Temperature | Industry | -45 – +105℃ |
Military l | -55 – +105℃ | |

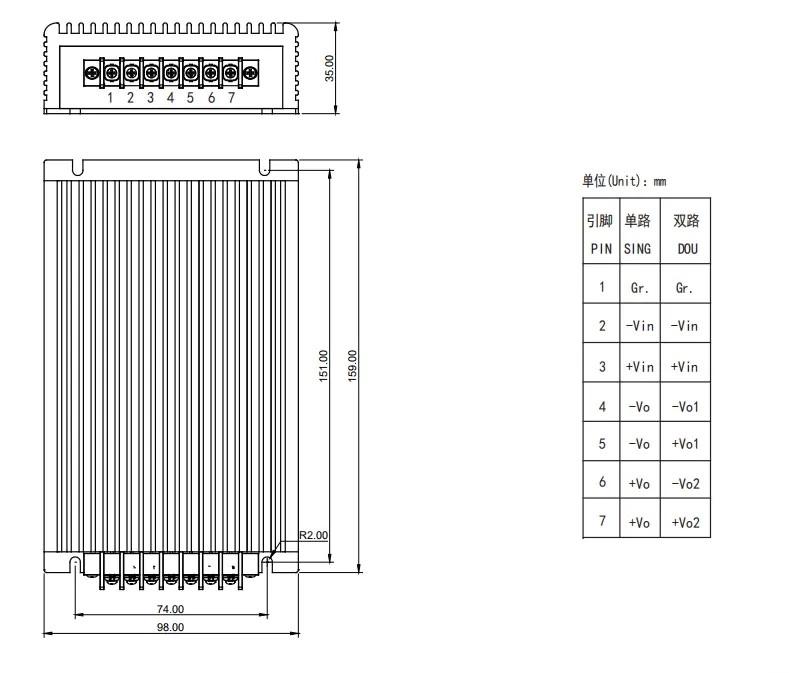

VI. MECHANICAL DRAWING AND PIN DEFINITION
