The Challenge: Powering Railway Signaling in Harsh Environments
Wide voltage fluctuations in railway battery systems (9–36VDC) demand converters that can handle 2:1 input ranges without output drift
Galvanic isolation is mandatory to prevent ground loops between high-voltage traction power and low-voltage signaling circuits
Space constraints in trackside cabinets and control panels require compact, high-density power solutions
Reliability must be absolute — a single power failure can halt train operations across an entire corridor

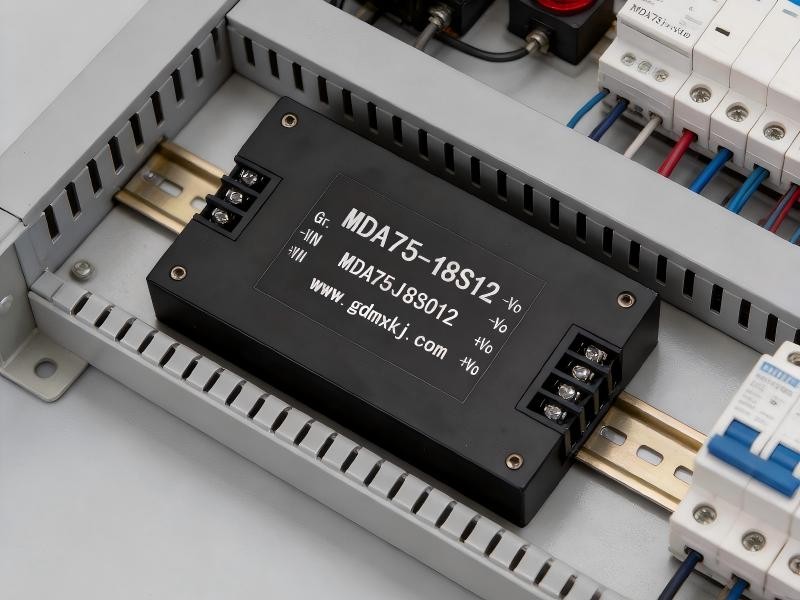

Product Introduction: MDA75-18S12
Parameter Specification Model MDA75-18S12 Nominal Input Voltage 18 VDC Input Voltage Range 9–36 VDC (2:1 wide range) Output Voltage 12 VDC Output Current 6.25 A Output Power 75 W Ripple & Noise (PK-PK) 120 mV Efficiency (Typ) 83% Isolation (Input-Output) >1500 VDC Isolation (Input-Case) >1050 VDC Isolation (Output-Case) >500 VDC Operating Temperature -25°C to +85°C (Industrial) / -40°C to +85°C (Military I) / -55°C to +85°C (Military II) Dimensions 116.4 × 65 × 22 mm Protections Input under/over voltage, over temperature, output over current, output short circuit Switching Frequency 100–200 KHz
Application: Railway Signaling Systems
Key Features
π-type input filter for superior EMI performance in electrically noisy environments
High power density in a compact, shielded metal enclosure
2:1 wide input voltage range covering standard 18V battery systems
High reliability, long lifetime design for mission-critical railway applications
Dual-side pin-out for simplified PCB integration and maintenance
Conclusion
The MDA75-18S12 combines 75W isolated power conversion, 2:1 wide input range, and >1500VDC galvanic isolation in a compact, rugged package — making it an ideal power solution for railway signaling systems that demand absolute reliability under the harshest operating conditions.
