Reliability for Mission-Critical 12VDC Communication Systems
In the era of 5G and industrial IoT, communication cabinets and outdoor network nodes face brutal environments—grid fluctuations, lightning surges, EMI, and extreme humidity. Standard power supplies often fail, leading to data loss and costly downtime.

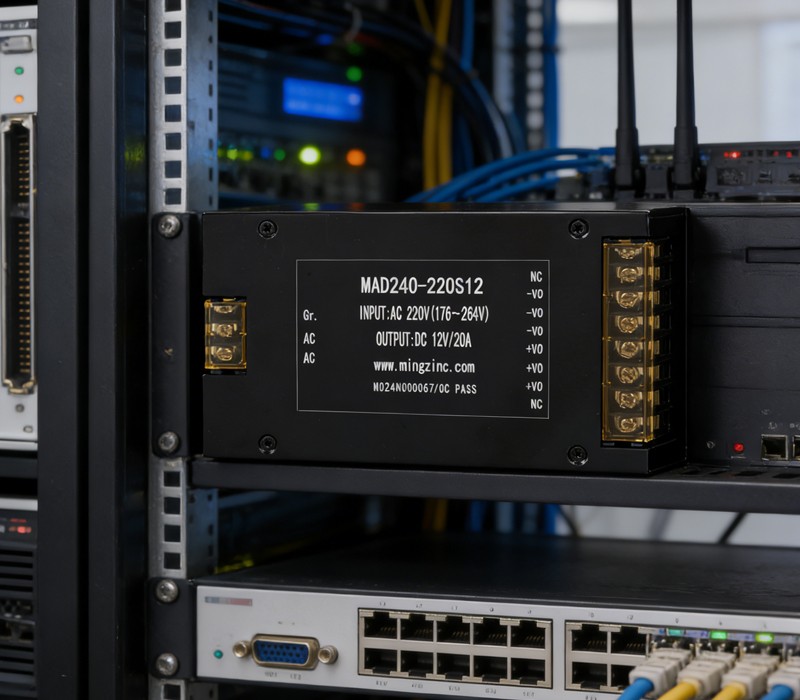

The MINGXIN MAD240-220S12 is a professional-grade 240W 220VAC to 12VDC Isolated Power Module. Engineered with an IP65-rated aluminum alloy housing and advanced thermal management, it provides the "rock-solid" 12V bus required by high-end switches, routers, and optical transport platforms.
I. Why Isolation & IP65 Rating Matter in Telecom Power?
Communication boards and RF modules are sensitive to "dirty" power. Without high-grade isolation, lightning strikes or grid spikes can bypass the PSU and fry expensive downstream processors.
The MINGXIN Advantage:
Electrical Isolation: Galvanically separates the high-voltage AC input from the sensitive 12V DC load, blocking common-mode noise.
Environmental Sealing: The IP65 design prevents failure caused by dust ingress or condensation in outdoor non-climate-controlled cabinets.
II. Technical Specifications: MAD240-220S12
| Feature | Specification |
| Model | MAD240-220S12 |
| Rated Power | 240W |
| Input Voltage | 220VAC (Range: 176–264VAC) |
| Output Voltage | 12VDC |
| Output Current | 20A (Max) |
| Protection Class | IP65 Waterproof/Dustproof |
| Dimensions | 159 × 98 × 27.5 mm |
| Cooling | Natural Convection (Heat-sink compatible) |
| Isolation Type | Fully Isolated AC-DC |
III. Target Applications: Powering the Connected World
This 240W module is the preferred choice for system integrators deploying:
Industrial Ethernet Switches & Routers: Ensuring zero packet loss during voltage dips.
Fiber Optic Transceivers (GPON/EPON): Stable power for long-haul data transmission.
Outdoor Wireless Base Stations: Ruggedized for 24/7 operation in harsh climates.
CCTV & Edge Computing Nodes: Clean 12V power for AI processing and high-def video streams.
IV. Engineered for Performance: Key Technical Highlights
1. Superior EMI/EMC Filtering
Integrated wide-band noise filters suppress high-frequency interference, ensuring that the power supply does not interfere with wireless signal integrity.
2. Rapid Dynamic Response
Telecom loads can fluctuate instantly. The MAD240-220S12 maintains a stable 12V output even during sudden load steps, preventing system reboots.
3. Thermal Excellence
The fully encapsulated aluminum shell acts as a massive heat sink. Designed for fanless operation, it eliminates the weakest link in power supplies—the cooling fan—vastly increasing the MTBF (Mean Time Between Failures).
4. Global Safety Compliance
Designed to meet UL1950 and IEC950 standards, simplifying the certification process for your end-system.
V. Comprehensive Protection Suite
Input Protection: Under-voltage & Over-voltage lockout.
Output Protection: Short-circuit, Over-current, and Over-voltage protection.
Thermal Protection: Intelligent shut-down on critical over-temperature.
VI. Why Partner with MINGXIN Technology?
Based in the Gaosheng Industrial Park, Dongguan, Guangdong Mingxin Technology Co., Ltd. is a leader in high-reliability power conversion. We don't just sell modules; we provide engineering partnerships.
Customization: Tailored voltage/current outputs and specialized form factors.
Ruggedization: Enhanced vibration, moisture, and salt-spray resistance for maritime or rail applications.
Support: Direct access to R&D engineers for rapid prototyping and selection.
Looking for a Reliable 12V Telecom Power Solution?
Don't compromise your network uptime with "consumer-grade" adapters. Secure your infrastructure with the MAD240-220S12.
[Contact Our Engineering Team] for Data Sheets, Step Files, or to Request a Sample for Testing.
