  • DH-8300 Series Programmable DC Electronic Load
  • DH-8300 Series Programmable DC Electronic Load

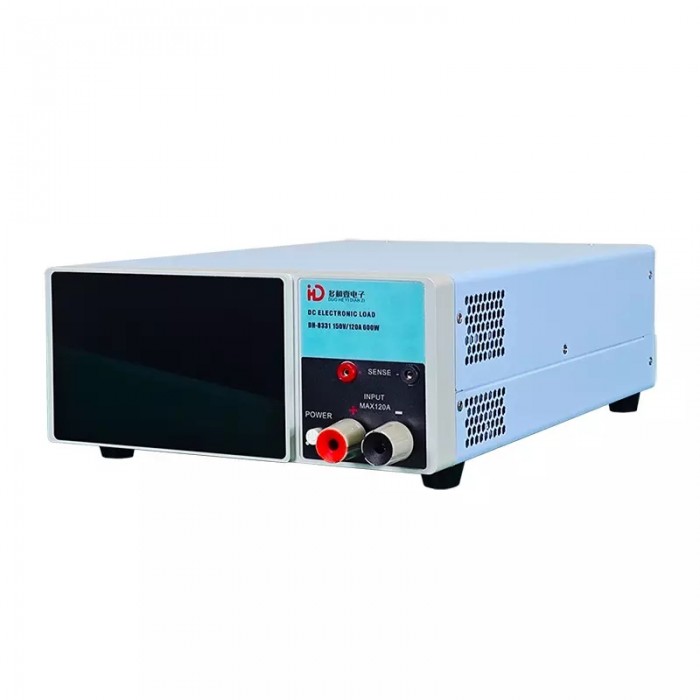

DH-8300 Series Programmable DC Electronic Load

Brand: MINGZINC
MOQ: 5 Pieces
Delivery time: 25 Day
Power: 1200 W
Input voltage: 0~1200 VDC
Input current: 0~240 A
Size:315*215*88 mm

The product is equipped with power cords for different countries. Please contact us for details.
  • Product Details

1.Main features:
★ Voltage/current (Vpp/Ipp), peak (Vp+/Ip+), valley (Vp-/Ip-) measurement.
★ Programmable current rise/fall rate.
★ Four basic operation modes: constant current, constant voltage, constant power, and constant resistance.
★ Support LED simulation function.
★ Up to 50KHz dynamic load mode (DYNA), and voltage peak and valley Vp+, Vp-, current peak and valley Ip+, Ip- measurement.
★ Support up to 20MHz ripple measurement function.
★ Support overcurrent protection test (OCP).
★ Support timing measurement (Timing).
★ Support short circuit (Short) simulation function.
★ Support single machine automatic test (A-Test), support all expansion modes, support all detection items.
★ Support battery discharge and power test (Battery).
★ Support remote compensation.
★ Support Von and Voff functions.
★ Automatic test supports 8 files, each file stores and reads 50 steps of global data.
★ Current sequence supports 8 files, each file stores and reads 200 steps of global data.

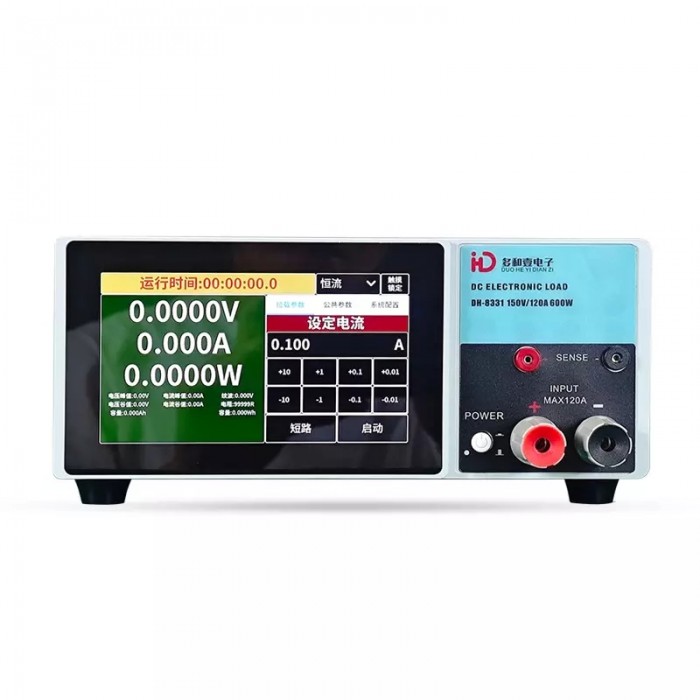

★ High brightness full-viewing angle 5-inch touch screen graphic dot matrix display.
★ Overvoltage/overcurrent/overpower/overheating protection.
★ Intelligent fan system.

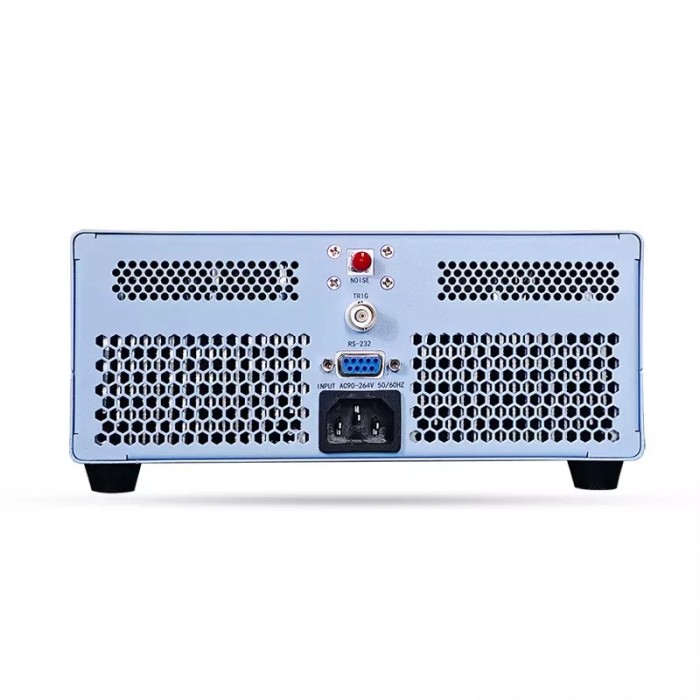

★ Electrical isolation, external trigger input.
★ Electrical isolation, standard RS232 interface.
★ Standard SCPI protocol.

Technical Specifications


2.1. Main technical specifications


Single Channel


Model

DH-8311

DH-8321

DH-8331

DH-8341

Rated Input

Power

150W

300W

600W

1200W

Voltage

0~15V

0~150V

0~15V

0~150V

0~15V

0~150V

0~15V

0~150V

Current

0~3A

0~30A

0~6A

0~60A

0~12A

0~120A

0~24A

0~240A

Min. Operating Voltage

1V@30A

1V@60A

1.4V@120A

1.8V@240A

CC Mode

Range

0~3A

0~30A

0~6A

0~60A

0~12A

0~120A

0~24A

0~240A

Resolution

0.5mA

1mA

0.5mA

1mA

1mA

10mA

1mA

10mA

Accuracy

0.05%+0.05%FS


CV Mode

Range

0~15V

0~150V

0~15V

0~150V

0~15V

0~150V

0~15V

0~150V

Resolution

0.5mV

3mV

0.8mV

8mV

1mV

10mV

1.3mV

13mV

Accuracy

0.03%+0.05%FS

CP Mode

Range

150W

300W

600W

1200W

Resolution

16Bits

Accuracy

0.1%+0.1%FS

CR Mode

Range

0.05Ω~50KΩ

0.05Ω~50KΩ

0.05Ω~50KΩ

0.05Ω~50KΩ

Resolution

16Bits

Accuracy

(0.1+0.01R)%

(0.1+0.01R)%

(0.1+0.02R)%

(0.1+0.02R)%

LED Mode

Accuracy

100kHz and above

Rd coefficient range

0.001~1

Dynamic Mode

Range

10uS~50S

Resolution

2uS

Accuracy

1uS+20PPM

Slew Rate

0.6A/mS~3A/uS

0.6A/mS~3A/uS

1.2A/mS~3A/uS

1.2A/mS~3A/uS

Voltage Measurement

Range

0~15V

0~150V

0~15V

0~150V

0~15V

0~150V

0~15V

0~150V

Resolution

0.1mV

1mV

0.1mV

1mV

0.1mV

1mV

0.1mV

1mV

Accuracy

0.02%+0.05%FS

Current Measurement

Range

0~3A

0~30A

0~6A

0~60A

0~12A

0~120A

0~24A

0~240A

Resolution

0.1mA

1mA

0.1mA

2mA

0.2mA

2mA

0.2mA

2mA

Accuracy

0.03%+0.05%FS

Ripple Measurement

Range

0~150V

Bandwidth

10Hz~20MHz

Resolution

1mV



Model

DH-8311M

DH-8321M

DH-8331M

DH-8341M

Rated Input

Power

150W

300W

600W

1200W

Voltage

0~60V

0~600V

0~60V

0~600V

0~60V

0~600V

0~60V

0~600V

Current

0~1.5A

0~15A

0~3A

0~30A

0~6A

0~60A

0~12A

0~120A

Min. Operating Voltage

2V@15A

2V@30A

2.4V@60A

2.8V@120A

CC Mode

Range

0~1.5A

0~15A

0~3A

0~30A

0~6A

0~60A

0~12A

0~120A

Resolution

0.5mA

1mA

0.5mA

1mA

0.5mA

1mA

1mA

10mA

Accuracy

0.05%+0.05%FS


CV Mode

Range

0~60V

0~600V

0~60V

0~600V

0~60V

0~600V

0~60V

0~600V

Resolution

0.5mV

3mV

0.8mV

8mV

1mV

10mV

1.3mV

13mV

Accuracy

0.03%+0.03%FS

CP Mode

Range

150W

300W

600W

1200W

Resolution

16Bits

Accuracy

0.1%+0.1%FS

CR Mode

Range

0.05Ω~50KΩ

0.05Ω~50KΩ

0.05Ω~50KΩ

0.05Ω~50KΩ

Resolution

16Bits

Accuracy

(0.1+0.01R)%

(0.1+0.01R)%

(0.1+0.02R)%

(0.1+0.02R)%

LED Mode

Accuracy

100kHz and above

Rd coefficient range

0.001~1

Dynamic Mode

Range

10uS~50S

Resolution

2uS

Accuracy

1uS+20PPM

Slew Rate

0.6A/mS~3A/uS

0.6A/mS~3A/uS

1.2A/mS~3A/uS

1.2A/mS~3A/uS

Voltage Measurement

Range

0~60V

0~600V

0~60V

0~600V

0~60V

0~600V

0~60V

0~600V

Resolution

1mV

10mV

1mV

10mV

1mV

10mV

1mV

10mV

Accuracy

0.02%+0.05%FS

Current Measurement

Range

0~1.5A

0~15A

0~3A

0~30A

0~6A

0~60A

0~12A

0~120A

Resolution

0.01mA

0.1mA

0.01mA

0.1mA

0.2mA

1mA

0.5mA

10mA

Accuracy

0.03%+0.05%FS

Ripple Measurement

Range

0~600V

Bandwidth

10Hz~20MHz

Resolution

10mV



Multi-channel

Model

DH-8312

DH-8322

DH-8314

DH-8318

DH-8324

DH-8332

Rated Input

Power

150W*2

300W*2

150W*4

150W*8

300W*4

600*2

Voltage

0~15V

0~150V

0~15V

0~150V

0~15V

0~150V

0~15V

0~150V

0~15V

0~150V

0~15V

0~150V

Current

0~3A

0~30A

0~6A

0~60A

0~3A

0~30A

0~3A

0~30A

0~6A

0~60A

0~12A

0~120A

Min. Operating Voltage

1V@30A

1.4V@60A

1V@30A

1V@30A

1.4V@60A

1.8V@120A

CC Mode

Range

0~3A

0~30A

0~6A

0~60A

0~3A

0~30A

0~3A

0~30A

0~6A

0~60A

0~6A

0~60A

Resolution

0.05mA

0.5mA

0.05mA

0.5mA

0.05mA

0.5mA

0.05mA

0.5mA

0.05mA

0.5mA

0.05mA

0.5mA

Accuracy

0.05%+0.05%FS


CV Mode

Range

0~15V

0~150V

0~15V

0~150V

0~15V

0~150V

0~15V

0~150V

0~15V

0~150V

0~15V

0~150V

Resolution

0.2mV

2mV

0.2mV

2mV

0.2mV

2mV

0.2mV

2mV

0.2mV

2mV

0.2mV

2mV

Accuracy

0.05%+0.05%FS

CP Mode

Range

150W

300W

150W

150W

300W

600W

Resolution

16Bits

Accuracy

0.1%+0.1%FS

CR Mode

Range

0.05Ω~50KΩ

0.05Ω~50KΩ

0.05Ω~50KΩ

0.05Ω~50KΩ

0.05Ω~50KΩ

0.05Ω~50KΩ

Resolution

16Bits

Accuracy

(0.1+0.01R)%

(0.1+0.01R)%

(0.1+0.02R)%

(0.1+0.01R)%

(0.1+0.01R)%

(0.1+0.02R)%

LED Mode

Accuracy

100kHz and above

Rd coefficient range

0.001~1

Dynamic Mode

Range

10uS~50S

Resolution

2uS

Accuracy

1uS+20PPM

Slew Rate

0.6A/mS~3A/uS

0.6A/mS~3A/uS

1.2A/mS~3A/uS

0.6A/mS~3A/uS

0.6A/mS~3A/uS

1.2A/mS~3A/uS

Voltage Measurement

Range

0~15V

0~150V

0~15V

0~150V

0~15V

0~150V

0~15V

0~150V

0~15V

0~150V

0~15V

0~150V

Resolution

0.1mV

1mV

0.1mV

1mV

0.1mV

1mV

0.1mV

1mV

0.1mV

1mV

0.1mV

1mV

Accuracy

0.02%+0.05%FS

Current Measurement

Range

0~3A

0~30A

0~6A

0~60A

0~3A

0~30A

0~3A

0~30A

0~6A

0~60A

0~12A

0~120A

Resolution

0.01mA

0.1mA

0.01mA

0.2mA

0.02mA

0.2mA

0.01mA

0.1mA

0.01mA

0.2mA

0.04mA

1mA

Accuracy

0.03%+0.05%FS

Ripple Measurement

Range

0~150V

Bandwidth

10Hz~10MHz

Resolution

1mV



Model

DH-8312M

DH-8322M

DH-8314M

DH-8318M

DH-8324M

DH-8332M

Rated Input

Power

150W*2

300W*2

150W*4

150W*8

300W*4

600*2

Voltage

0~60V

0~600V

0~60V

0~600V

0~60V

0~600V

0~60V

0~600V

0~60V

0~600V

0~60V

0~600V

Current

0~1.5A

0~15A

0~3A

0~30A

0~1.5A

0~15A

0~1.5A

0~15A

0~3A

0~30A

0~6A

0~60A

Min. Operating Voltage

1.2V@15A

1.6V@30A

1.2V@15A

1.2V@15A

1.6V@30A

1.8V@60A

CC Mode

Range

0~1.5A

0~15A

0~3A

0~30A

0~1.5A

0~15A

0~1.5A

0~15A

0~3A

0~30A

0~6A

0~60A

Resolution

0.05mA

0.5mA

0.05mA

0.5mA

0.05mA

0.5mA

0.05mA

0.5mA

0.05mA

0.5mA

0.05mA

0.5mA

Accuracy

0.05%+0.05%FS


CV Mode

Range

0~60V

0~600V

0~60V

0~600V

0~60V

0~600V

0~60V

0~600V

0~60V

0~600V

0~60V

0~600V

Resolution

0.5mV

2mV

0.5mV

2mV

0.5mV

2mV

0.5mV

2mV

0.5mV

2mV

0.5mV

2mV

Accuracy

0.05%+0.05%FS

CP Mode

Range

150W

300W

150W

150W

300W

600W

Resolution

16Bits

Accuracy

0.1%+0.1%FS

CR Mode

Range

0.05Ω~50KΩ

0.05Ω~50KΩ

0.05Ω~50KΩ

0.05Ω~50KΩ

0.05Ω~50KΩ

0.05Ω~50KΩ

Resolution

16Bits

Accuracy

(0.1+0.01R)%

(0.1+0.01R)%

(0.1+0.02R)%

(0.1+0.01R)%

(0.1+0.01R)%

(0.1+0.02R)%

LED Mode

Accuracy

100kHz and above

Rd coefficient range

0.001~1

Dynamic Mode

Range

10uS~50S

Resolution

2uS

Accuracy

1uS+20PPM

Slew Rate

0.6A/mS~3A/uS

0.6A/mS~3A/uS

1.2A/mS~3A/uS

1.2A/mS~3A/uS

1.2A/mS~3A/uS

1.2A/mS~3A/uS

Voltage Measurement

Range

0~60V

0~600V

0~60V

0~600V

0~60V

0~600V

0~60V

0~600V

0~60V

0~600V

0~60V

0~600V

Resolution

0.5mV

2mV

0.5mV

2mV

0.5mV

2mV

0.5mV

2mV

0.5mV

2mV

0.5mV

2mV

Accuracy

0.02%+0.05%FS

Current Measurement

Range

0~1.5A

0~15A

0~3A

0~30A

0~1.5A

0~15A

0~1.5A

0~15A

0~3A

0~30A

0~6A

0~60A

Resolution

0.01mA

0.1mA

0.01mA

0.1mA

0.02mA

0.2mA

0.02mA

0.2mA

0.02mA

0.2mA

0.05mA

0.5mA

Accuracy

0.03%+0.05%FS

Ripple Measurement

Range

0~600V

Bandwidth

10Hz~10MHz

Resolution

10mV



Model

DH-8312H

DH-8322H

DH-8314H

DH-8318H

DH-8324H

DH-8332H

Rated Input

Power

150W*2

300W*2

150W*4

150W*8

300W*4

600*2

Voltage

0~120V

0~1200V

0~120V

0~1200V

0~120V

0~1200V

0~120V

0~1200V

0~120V

0~1200V

0~120V

0~1200V

Current

0~0.6A

0~6A

0~1.5A

0~15A

0~0.6A

0~6A

0~0.6A

0~6A

0~1.5A

0~15A

0~3A

0~30A

Min. Operating Voltage

2V@6A

2.4V@15A

2V@6A

2V@6A

2.4V@15A

3.8V@30A

CC Mode

Range

0~0.6A

0~6A

0~1.5A

0~15A

0~0.6A

0~6A

0~0.6A

0~6A

0~1.5A

0~15A

0~3A

0~30A

Resolution

0.05mA

0.5mA

0.05mA

0.5mA

0.05mA

0.5mA

0.05mA

0.5mA

0.05mA

0.5mA

0.05mA

0.5mA

Accuracy

0.05%+0.05%FS


CV Mode

Range

0~120V

0~1200V

0~120V

0~1200V

0~120V

0~1200V

0~120V

0~1200V

0~120V

0~1200V

0~120V

0~1200V

Resolution

0.2mV

2mV

0.2mV

2mV

0.2mV

2mV

0.2mV

2mV

0.2mV

2mV

0.2mV

2mV

Accuracy

0.05%+0.05%FS

CP Mode

Range

150W

300W

150W

150W

300W

600W

Resolution

16Bits

Accuracy

0.1%+0.1%FS

CR Mode

Range

0.05Ω~50KΩ

0.05Ω~50KΩ

0.05Ω~50KΩ

0.05Ω~50KΩ

0.05Ω~50KΩ

0.05Ω~50KΩ

Resolution

16Bits

Accuracy

(0.1+0.01R)%

(0.1+0.01R)%

(0.1+0.02R)%

(0.1+0.02R)%

(0.1+0.02R)%

(0.1+0.02R)%

LED Mode

Accuracy

100kHz and above

Rd coefficient range

0.001~1

Dynamic Mode

Range

10uS~50S

Resolution

2uS

Accuracy

1uS+20PPM

Slew Rate

0.6A/mS~3A/uS

0.6A/mS~3A/uS

1.2A/mS~3A/uS

0.6A/mS~3A/uS

0.6A/mS~3A/uS

1.2A/mS~3A/uS

Voltage Measurement

Range

0~120V

0~1200V

0~120V

0~1200V

0~120V

0~1200V

0~120V

0~1200V

0~120V

0~1200V

0~120V

0~1200V

Resolution

0.2mV

2mV

0.2mV

2mV

0.2mV

2mV

0.2mV

2mV

0.2mV

2mV

0.2mV

2mV

Accuracy

0.02%+0.05%FS

Current Measurement

Range

0~0.6A

0~6A

0~1.5A

0~15A

0~0.6A

0~6A

0~0.6A

0~6A

0~1.5A

0~15A

0~3A

0~30A

Resolution

0.05mA

0.5mA

0.05mA

0.5mA

0.05mA

0.5mA

0.05mA

0.5mA

0.05mA

0.5mA

0.05mA

0.5mA

Accuracy

0.03%+0.05%FS

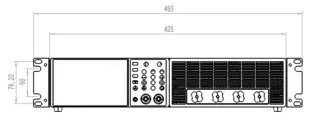

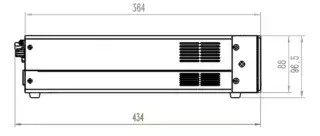

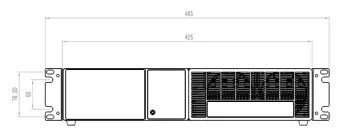

2.2. Dimensions










2.3. Supplementary features

AC power input range: AC90-264V 50Hz/60Hz

Cooling method: forced air cooling Operating temperature: 0~40℃ Storage temperature: -20~70℃

Usage environment: Indoor use design, maximum humidity 90%




    Other categories
    Copyright © Guangdong Mingzinc Technology Co., Ltd
    Add: Room 208-210, Unit 3, Building 4, No. 111 Hongtu Road, Nancheng Street, Dongguan City, Guangdong Province.
