In industrial computers (IPC), embedded industrial control hosts, and edge computing devices, a stable 24V DC power supply is essential for the reliable operation of motherboards, power management modules, interface boards, and peripherals. However, in real industrial environments, 48V DC bus systems are widely used, often accompanied by voltage fluctuations, surge interference, high temperatures, dust, and humidity. Under these conditions, ordinary power modules often fail to deliver long-term stable performance.

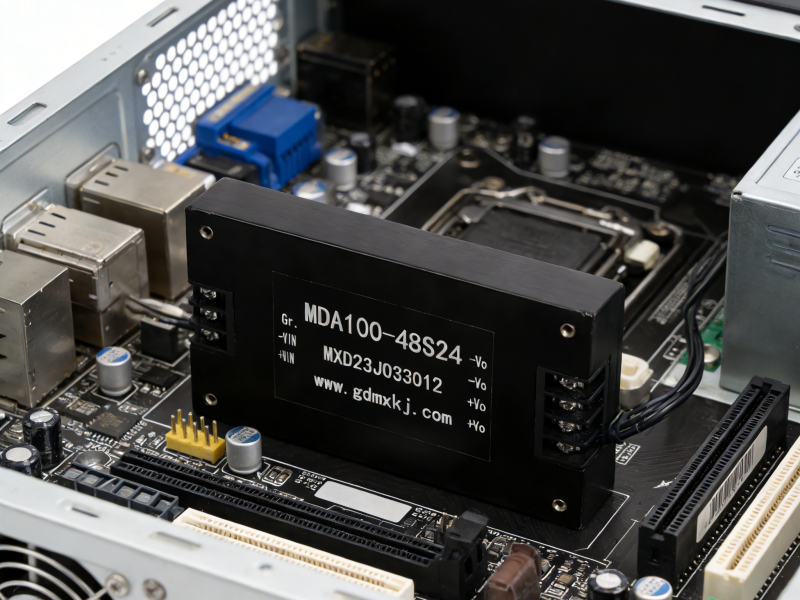

The MINGZINC MDA100-48S24 is a 100W 48V to 24V isolated IP65 waterproof DC-DC power module specifically designed for industrial control environments. Featuring a fully sealed aluminum alloy housing, it offers wide input range, electrical isolation, low ripple and noise, fast dynamic response, and efficient natural cooling, making it an ideal power solution for industrial computer systems that require stable and reliable 24V power.
Why Industrial Computers Need an Isolated 48V to 24V DC-DC Converter
In practical industrial projects, a 48V DC bus is a common power architecture, while industrial computers and peripheral modules often require 24V operating voltage. If a non-isolated step-down solution is used directly, surges and common-mode noise generated by motors, inverters, welding machines, and other industrial equipment can easily be transmitted into the industrial computer, causing:
System crashes
False triggering
Communication failures
Interface damage
For this reason, the standard design approach is to use a 48V to 24V isolated DC-DC converter, which provides electrical isolation and effective anti-interference protection at the power stage.
Typical Loads Powered by the MDA100-48S24 in Industrial Computer Systems
By converting 48V DC into stable 24V DC, the MDA100-48S24 can reliably power:
Industrial computer IPC hosts
Embedded industrial control motherboards
Industrial display terminals
I/O acquisition modules
Communication interface modules
Industrial sensing and control units
Its fast dynamic response helps handle sudden load changes and maintain a stable 24V bus voltage.
Key Electrical Specifications
| Parameter | Specification |
|---|---|
| Model | MDA100-48S24 |
| Rated Power | 100W |
| Input Voltage | 48VDC |
| Input Range | 36–72VDC |
| Output Voltage | 24VDC |
| Output Current | 4.17A |
| Conversion Type | Isolated DC-DC |
| Protection Rating | IP65 Waterproof |
| Housing Structure | Fully sealed aluminum alloy enclosure |
| Cooling Method | Natural cooling (optional external heatsink) |
Core Technical Features Designed for Industrial Control Environments
Wide Input Range for 48V Industrial Bus Fluctuations
The module supports a 36–72VDC wide input range, making it fully compatible with standard 48V industrial power systems and field voltage fluctuations.
Wideband Input Noise Filtering and Low Ripple Output
It effectively suppresses high-frequency interference and spike noise, helping ensure stable operation of IPC motherboards and sensitive industrial electronics.
Input-to-Output Electrical Isolation
The high-isolation design prevents surges, common-ground interference, and industrial noise from entering the control system.
Fully Sealed Aluminum Housing with Efficient Heat Dissipation
The enclosure itself contributes to heat dissipation, enabling long-term full-load operation without requiring a cooling fan.
Fast Dynamic Response
Even under frequent industrial load changes, the power module can maintain a stable 24V DC output.
Comprehensive Electrical Protection Design
The MDA100-48S24 includes multiple protection functions:
Input undervoltage protection
Input overvoltage protection
Output overcurrent protection
Overtemperature protection
Input-to-output electrical isolation protection
These features ensure long-term reliable operation of industrial computer systems.
Why IP65 Waterproof Design Matters in Industrial IPC Applications
Industrial control cabinets and equipment are often installed in environments such as:
High-dust workshops
Humid or oil-mist production areas
High-temperature enclosed cabinets
Outdoor industrial control equipment
The MDA100-48S24 adopts a potting and fully sealed structure with an IP65 protection rating, significantly improving the stability and service life of the power module in harsh conditions.
Compliance with International Safety Standards
The product design complies with:
UL1950
IEC950
This helps end equipment manufacturers complete safety certification more efficiently.
MINGZINC’s Customization Advantages in Industrial Power Solutions
MINGZINC supports:
Custom voltage, current, and structural designs
Enhanced EMI / EMC anti-interference optimization
Reinforced vibration, moisture, and salt-spray resistance
OEM / ODM and non-standard power supply development
Sample testing and engineering selection support
About Guangdong Mingzinc Technology Co., Ltd.
Guangdong Mingzinc Technology Co., Ltd., located in Dongguan, Guangdong, China, specializes in the R&D, production, and sales of AC/DC power modules, DC/DC power modules, railway power supplies, and industrial control power supplies. Its products are widely used in industrial control, automation equipment, new energy systems, and specialized applications. MINGZINC provides both standard products and customized power supply solutions for global customers.
Get the MDA100-48S24 Datasheet and Industrial Power Selection Support
If you are looking for a 48V to 24V isolated waterproof DC-DC power module for industrial computers, embedded control systems, or industrial automation equipment, contact MINGZINC engineers today to get the MDA100-48S24 datasheet and professional selection support.
