With the continuous development of railway transportation, metro systems, and light rail networks, onboard electronic subsystems are becoming increasingly intelligent and interconnected. As a result, power modules used in railway environments must meet higher requirements for stability, electrical isolation, vibration resistance, and electromagnetic interference protection.
Many railway platforms operate using 110VDC onboard power architecture, while subsystems such as signal processing units, communication modules, monitoring systems, sensors, and control electronics require stable 12VDC auxiliary power.

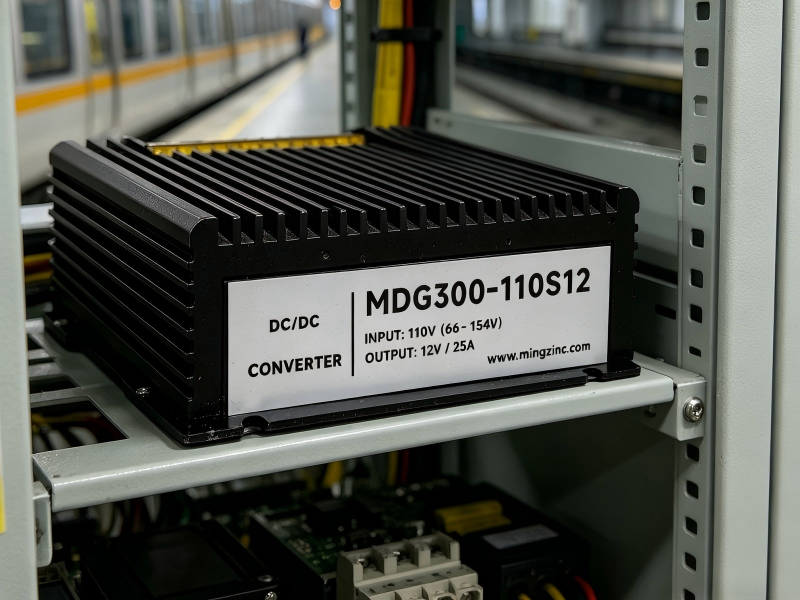

The MINGZINC MDG300-110S12 is a 300W isolated 110VDC to 12VDC IP65 waterproof DC-DC converter specifically designed for railway onboard auxiliary power systems. It delivers stable output performance in harsh rail environments and ensures reliable operation of critical train electronics.
Why Railway Systems Require an Isolated 110VDC to 12VDC Converter
Typical railway onboard architecture:
110VDC main power system
→ auxiliary subsystem conversion
→ stable 12VDC control electronics supply
12V subsystems typically include:
train communication modules
signal acquisition equipment
monitoring electronics
sensor systems
control interfaces
embedded processors
During railway operation, events such as:
traction switching
regenerative braking
electromagnetic interference
voltage fluctuation across DC bus
can introduce surge spikes and noise interference.
Using a non-isolated converter may cause:
communication instability
sensor failure
controller reset
signal processing interruption
Therefore, railway onboard systems should adopt:
isolated 110VDC to 12VDC DC-DC converters for safe auxiliary power distribution
Typical Applications of MDG300-110S12 in Rail Transit Systems
The MDG300-110S12 is widely used in:
train onboard control electronics
railway signal acquisition modules
metro communication systems
light rail auxiliary power systems
train monitoring platforms
rail sensor interfaces
rail embedded processors
industrial AI railway subsystems
Its fast dynamic response ensures stable 12V output during load switching and voltage disturbances in railway environments.
Key Electrical Specifications
Model: MDG300-110S12
Rated Power: 300W
Input Voltage: 110VDC
Input Range: 66–154VDC
Output Voltage: 12VDC
Output Current: 25A
Isolation Type: Input-output electrical isolation
Protection Level: IP65 Waterproof
Housing: Fully sealed aluminum enclosure
Cooling Method: Natural convection cooling
Dimensions: 180 × 110 × 39 mm
Optional configurations:
200W–300W power range available
single-output or dual-output versions available
high-voltage input options available
Core Technical Advantages for Railway Applications
Wide Input Voltage Range for Railway DC Bus Stability
Supports 66–154VDC wide input range, ensuring compatibility with:
railway onboard voltage fluctuation
traction switching disturbance
cable voltage drop conditions
Dual Electrical Isolation Protection for System Safety
The module provides:
input-to-output electrical isolation
enhanced system safety protection
human safety assurance in rail environments
ensuring reliable operation of onboard electronics.
Low Ripple and Noise Output for Sensitive Rail Electronics
Integrated filtering suppresses:
surge voltage
spike interference
EMI disturbance
supporting stable performance of railway communication and control modules.
Fully Sealed Aluminum Housing with Excellent Thermal Performance
The aluminum enclosure provides:
efficient heat dissipation
fanless operation
compact installation flexibility
long operational lifespan
Superior Environmental Resistance for Railway Conditions
Internal thermal insulation potting structure enables:
anti-vibration protection
anti-moisture performance
anti-dust protection
anti-corrosion resistance
ideal for harsh rail transit environments.
Fast Dynamic Response During Load Switching Events
Maintains stable output during:
traction transitions
power switching
communication system load changes
ensuring uninterrupted subsystem operation.
Comprehensive Protection Features
The MDG300-110S12 includes:
input undervoltage protection
output overvoltage protection
output overcurrent protection
short circuit protection
overtemperature protection
input-output isolation protection
ensuring safe long-term railway operation.
IP65 Waterproof Protection for Harsh Rail Environments
Railway electronics typically operate in:
sealed onboard cabinets
vibration-intensive platforms
dust-heavy tunnel environments
humid outdoor rail infrastructure
The fully sealed structure ensures IP65 environmental protection, improving long-term reliability.
Flexible Integration Across Multiple Industries
Besides rail transit systems, the MDG300-110S12 is also suitable for:
artificial intelligence equipment
medical electronics
solar auxiliary control systems
industrial embedded platforms
communication infrastructure
providing flexible integration across multiple engineering applications.
Compliance with International Safety Standards
Designed according to:
UL1950
IEC950
supporting equipment manufacturers in passing global compliance requirements.
About Guangdong Mingzinc Technology Co., Ltd.
Guangdong Mingzinc Technology Co., Ltd., located in Dongguan, China, specializes in AC-DC modules, DC-DC converters, railway power supplies, industrial control power modules, and renewable energy power solutions used in rail transit, automation, AI equipment, and medical systems worldwide.
Get the MDG300-110S12 Datasheet
If you are designing railway onboard electronics, signal acquisition platforms, communication modules, or metro auxiliary control systems, contact MINGZINC engineers today to obtain the MDG300-110S12 datasheet and integration support.
